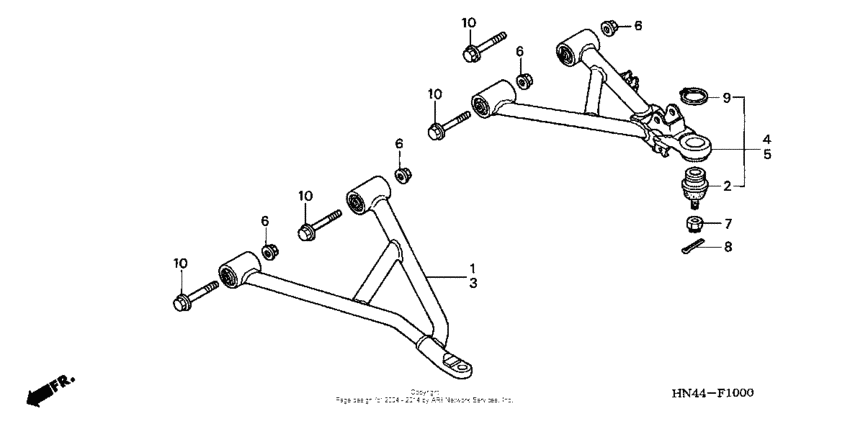

Front arm (1) Diagram Honda TRX 350 Rancher 350 ES
- Model code
- TRX350TE
- Engine Capacity
- 329
- Year
- 2001
- Sales region
- USA
- Frame
- 478TE244*1A100001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Rancher 350 ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51350-HN4-670 Arm, r. (lower) |
51350-HN4-670 |
US $99.11 |
||
|
2
|
2
51375-HP5-601 Joint a, arm ball |
51375-HP5-601 |
US $25.40 |
||
|
3
|
3
51360-HN4-670 Arm, l. (lower) |
51360-HN4-670 |
US $99.11 |
||
|
4
|
4
51370-HN4-670 Arm, r. (upper) |
51370-HN4-670 |
US $125.89 |
||
|
5
|
5
51380-HN4-670
Arm, l. (upper)
|
51380-HN4-670 |
— | ||
|
6
|
6
90305-HC0-770 Nut, self-lock, 10mm |
90305-HC0-770 |
from US $2.66 |
||
|
7
|
7
90310-HB9-000 Nut, castle (12mm) |
90310-HB9-000 |
from US $3.63 |
||
|
8
|
8
94201-30180 PinSPLIT, 3.0X18 |
94201-30180 |
from US $0.37 |
||
|
9
|
9
9451434000 Circlip (34mm) |
9451434000 |
from US $0.81 |
||
|
10
|
10
90151-HC5-000 Bolt, flange (10x62) |
90151-HC5-000 |
from US $5.33 |
||
|
10
|
10
95801-1006500 Bolt, flange, 10x65 |
95801-1006500 |
from US $1.18 |
||
| replacement | |||||
|
10
|
10
90151-HC5-000 Bolt, flange (10x62) |
90151-HC5-000 |
from US $5.33 |
||
