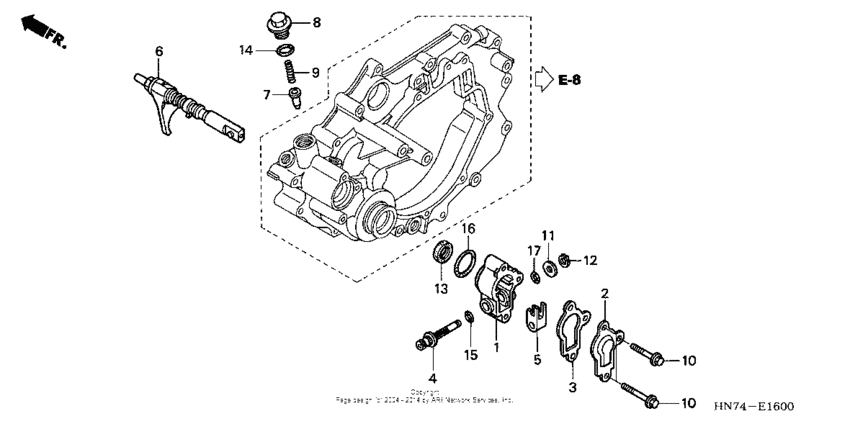

Shift fork Diagram Honda TRX 400 Rancher 400 AT GPScape
- Model code
- TRX400FGA A
- Engine Capacity
- 397
- Year
- 2006
- Sales region
- USA
- Frame
- 1HFTE294*64200001 - 1HFTE294*64299999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- FourTrax 400 AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24510-HN7-000 Case, change pivot |
24510-HN7-000 |
from US $25.11 |
||
|
2
|
2
24511-HN7-000 Plate, change cover |
24511-HN7-000 |
from US $3.67 |
||
|
3
|
3
24515-HN7-000 Gasket |
24515-HN7-000 |
from US $3.32 |
||
|
4
|
4
24521-HN7-000 Shaft, change lever |
24521-HN7-000 |
US $24.87 |
||
|
5
|
5
24522-HN7-000 Lever, change pivot |
24522-HN7-000 |
from US $30.55 |
||
|
6
|
6
24530-HN7-900
Shaft, change
|
24530-HN7-900 |
— | ||
|
7
|
7
24671-HN7-000 Pin, change stopper |
24671-HN7-000 |
from US $8.16 |
||
|
8
|
8
24672-HN7-900 Bolt, change stopper |
24672-HN7-900 |
from US $13.41 |
||
|
9
|
9
24673-HN7-000 Spring |
24673-HN7-000 |
US $2.02 |
||
|
10
|
10
95701-0604000 Bolt, flange, 6x40 |
95701-0604000 |
from US $0.62 |
||
|
11
|
11
90505-GJ3-600 Washer b (8mm) |
90505-GJ3-600 |
US $3.09 |
||
|
12
|
12
90604-HA0-000 Circlip (8mm) |
90604-HA0-000 |
from US $1.78 |
||
|
13
|
13
91203-965-003 Oil seal (15x25x7) |
91203-965-003 |
from US $7.16 |
||
|
14
|
14
91301-GR0-004 O-ring (15.2x1.5) |
91301-GR0-004 |
from US $2.15 |
||
|
15
|
15
91302-HB3-004 O-ring, 7.5x1.5 |
91302-HB3-004 |
from US $2 |
||
|
16
|
16
91316-612-000 O-ring27.5X1.7 |
91316-612-000 |
from US $2.66 |
||
|
17
|
17
91319-ME5-003 O-ring, 5.5x1.4 |
91319-ME5-003 |
from US $2.44 |
