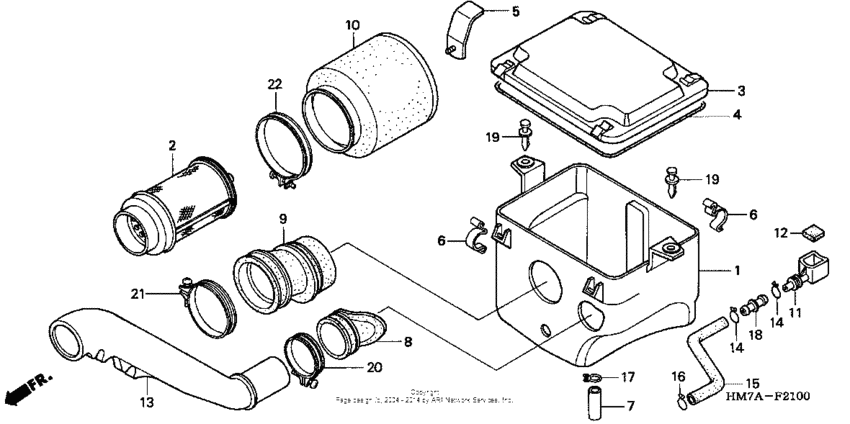

Air cleaner Diagram Honda TRX 400 Foreman 400
- Model code
- TRX400FW A
- Engine Capacity
- 397
- Year
- 2003
- Sales region
- USA
- Frame
- 478TE200*34400001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman 400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17210-HM7-L01
Air cleaner housing
|
17210-HM7-L01 |
— | ||
|
2
|
2
17211-HM7-000 Body, air cleaner |
17211-HM7-000 |
US $156.42 |
||
|
3
|
3
17217-HM7-000 Cover, a/clnr hsg |
17217-HM7-000 |
US $16.69 |
||
|
4
|
4
17219-HM7-000 Seal |
17219-HM7-000 |
from US $11.20 |
||
|
5
|
5
17221-HM7-000 Stay, a/clnr elem |
17221-HM7-000 |
US $16.54 |
||
|
6
|
6
17223-HB3-003 Spring, a/clnr ld st |
17223-HB3-003 |
from US $4.74 |
||
|
7
|
7
17224-HM5-930 Tube |
17224-HM5-930 |
from US $11.25 |
||
|
8
|
8
17252-HC4-000 Seal |
17252-HC4-000 |
from US $9.77 |
||
|
9
|
9
17253-HM7-000
Tube
|
17253-HM7-000 |
— | ||
|
10
|
10
17254-HC5-900 Element, air cleaner |
17254-HC5-900 |
from US $18.90 |
||
|
11
|
11
17255-HM7-L00 Joint, breather |
17255-HM7-L00 |
US $198.32 |
||
|
12
|
12
17256-HM7-L00 Cover, dust |
17256-HM7-L00 |
US $10.64 |
||
|
13
|
13
17259-HM7-000 Duct, snorkel |
17259-HM7-000 |
US $30.99 |
||
|
14
|
14
17316-611-000 Clip, breather tube |
17316-611-000 |
from US $2.29 |
||
|
15
|
15
17366-HM7-L00
Tube, breather
|
17366-HM7-L00 |
— | ||
|
16
|
16
17724-102-700 ClipSUB TANK HOSE |
17724-102-700 |
from US $2.44 |
||
|
17
|
17
18532-634-670 ClipAIR HOSE, 21.5 |
18532-634-670 |
from US $3.03 |
||
|
18
|
18
18631-MAH-710 Joint, two-way |
18631-MAH-710 |
from US $7.55 |
||
|
19
|
19
90653-HC4-900 Clip, mudguard |
90653-HC4-900 |
from US $1.80 |
||
|
20
|
20
90654-HM8-A60 Band (54) |
90654-HM8-A60 |
US $9.78 |
||
|
21
|
21
90662-HN5-M00 Band (62) |
90662-HN5-M00 |
US $2.09 |
||
|
22
|
22
90676-HN5-M00 Band (76) |
90676-HN5-M00 |
US $2.62 |
