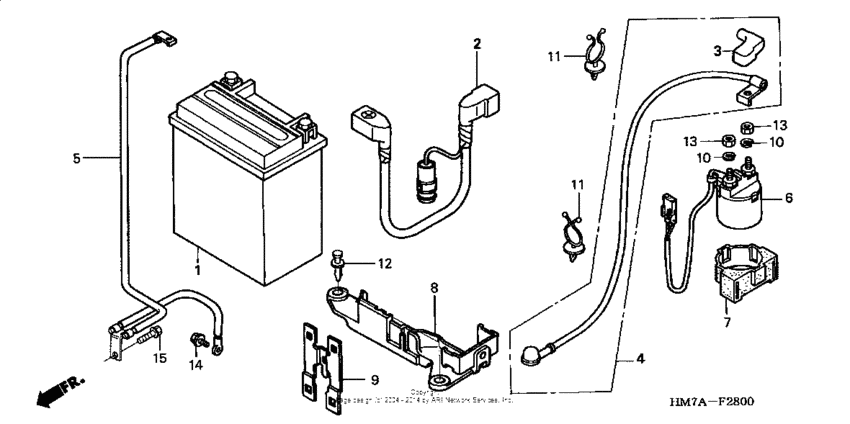

Battery Diagram Honda TRX 400 Foreman 400
- Model code
- TRX400FW A
- Engine Capacity
- 397
- Year
- 2003
- Sales region
- USA
- Frame
- 478TE200*34400001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman 400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31500-HC4-726AH
Battery (ytx14-bs)
|
31500-HC4-726AH |
— | ||
|
2
|
2
32401-HN0-670 Cable, relay battery |
32401-HN0-670 |
US $17.75 |
||
|
3
|
3
32404-HM5-730 Cover a |
32404-HM5-730 |
US $2.96 |
||
|
4
|
4
32405-HM7-000 Cable, starter motor |
32405-HM7-000 |
US $29.55 |
||
|
5
|
5
32601-HN0-A60 Cable |
32601-HN0-A60 |
US $27.64 |
||
|
6
|
6
35850-HM7-000 Switch assy |
35850-HM7-000 |
US $145.83 |
||
|
7
|
7
35856-KC1-700
Rubber
|
35856-KC1-700 |
— | ||
|
8
|
8
50326-HN0-670 Plate, electric |
50326-HN0-670 |
US $134.88 |
||
|
9
|
9
50328-HN0-670 Stay, fuse connector |
50328-HN0-670 |
US $0.54 |
||
|
10
|
10
90052-ZA0-800 Washer, spring, 6mm |
90052-ZA0-800 |
from US $0.74 |
||
|
11
|
11
90119-HA7-670 Clamp, harness |
90119-HA7-670 |
from US $2.59 |
||
|
12
|
12
90653-HC4-900 Clip, mudguard |
90653-HC4-900 |
from US $1.80 |
||
|
13
|
13
94002-063900S Nut, hex., 6mm |
94002-063900S |
from US $0.52 |
||
|
14
|
14
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.20 |
||
|
15
|
15
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
