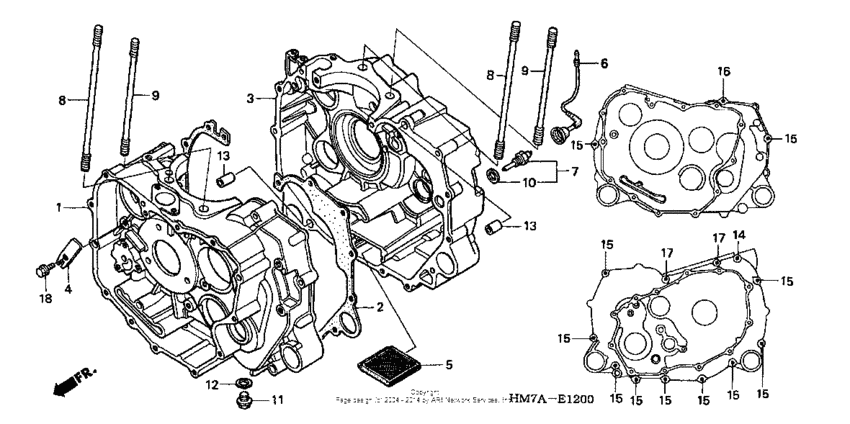

Crankcase Diagram Honda TRX 400 Foreman 400
- Model code
- TRX400FW A
- Engine Capacity
- 397
- Year
- 2003
- Sales region
- USA
- Frame
- 478TE200*34400001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman 400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-HM7-000 Crankcase, fr. |
11100-HM7-000 |
US $501.53 |
||
|
2
|
2
11191-HM7-000 Gasket, crankcase |
11191-HM7-000 |
from US $21.98 |
||
|
3
|
3
11200-HM7-000 Crankcase, rr. |
11200-HM7-000 |
US $501.53 |
||
|
4
|
4
14115-HM7-000 Plate, cam fixing |
14115-HM7-000 |
from US $4.47 |
||
|
5
|
5
15421-HC4-005 Screen, oil filter |
15421-HC4-005 |
US $14.84 |
||
|
6
|
6
32850-HM7-000 Sub-wire |
32850-HM7-000 |
US $18.67 |
||
|
7
|
7
37750-HC4-751 Sensor assy |
37750-HC4-751 |
from US $47.18 |
||
|
8
|
8
90031-HM7-000
Bolt, stud (10x206)
|
90031-HM7-000 |
— | ||
|
9
|
9
90032-HM7-000
Bolt, stud (10x180)
|
90032-HM7-000 |
— | ||
|
10
|
10
90401-HA8-000 Washer, seal |
90401-HA8-000 |
US $6.04 |
||
|
11
|
11
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.30 |
||
|
12
|
12
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
13
|
13
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
14
|
14
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
|
15
|
15
95701-0604000 Bolt, flange, 6x40 |
95701-0604000 |
from US $0.62 |
||
|
16
|
16
95701-060-550-0 BoltFLANGE, 6X55 |
95701-060-550-0 |
from US $0.74 |
||
|
17
|
17
95701-0607500 Bolt, flange, 6x75 |
95701-0607500 |
from US $0.81 |
||
|
18
|
18
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.62 |
