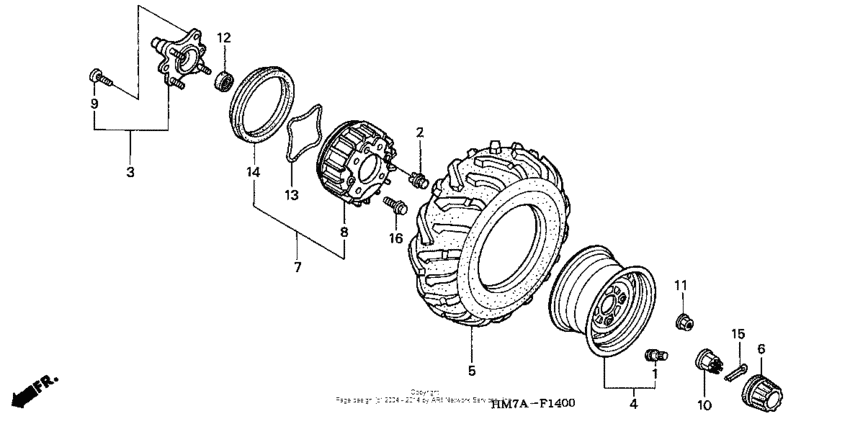

Front wheel Diagram Honda TRX 400 Foreman 400
- Model code
- TRX400FW A
- Engine Capacity
- 397
- Year
- 2003
- Sales region
- USA
- Frame
- 478TE200*34400001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman 400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42753-HF1-670 Valve, rim (tr412) |
42753-HF1-670 |
US $7.70 |
||
|
2
|
2
44602-HM5-A10 Plug, adjusting hole |
44602-HM5-A10 |
from US $4.59 |
||
|
3
|
3
44610-HM5-A80 Hub, fr. wheel |
44610-HM5-A80 |
US $340.32 |
||
|
4
|
4
44650-HM7-A40 Wheel set, fr. |
44650-HM7-A40 |
US $86.28 |
||
|
5
|
5
44711-HM7-003
Tire (24x8-11)
|
44711-HM7-003 |
— | ||
|
5
|
5
44711-HM7-007 Tire, fr. (24x8-11) |
44711-HM7-007 |
US $166.31 |
||
|
6
|
6
44732-HC4-000 Cap, wheel center |
44732-HC4-000 |
US $26.74 |
||
|
7
|
7
45700-HN5-670 Drum, fr. brake |
45700-HN5-670 |
US $564.67 |
||
|
8
|
8
45710-HM5-930 Drum, fr. brake |
45710-HM5-930 |
US $370.91 |
||
|
9
|
9
90104-HN0-A60 Bolt, wheel (10x38) |
90104-HN0-A60 |
from US $7.84 |
||
|
10
|
10
90305-HM5-A80 Nut, castle (16mm) |
90305-HM5-A80 |
from US $6.66 |
||
|
11
|
11
90314-HM5-A10 Nut, wheel |
90314-HM5-A10 |
from US $1.89 |
||
|
12
|
12
91261-HN5-671 Dust seal, fr. brake |
91261-HN5-671 |
US $45.42 |
||
|
13
|
13
91263-HA7-771 Dust seal |
91263-HA7-771 |
from US $4.74 |
||
|
14
|
14
91356-HA7-651 O-ring, brake drum |
91356-HA7-651 |
from US $11.25 |
||
|
15
|
15
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
15
|
15
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
15
|
15
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
16
|
16
96001-060-100-0 BoltFLANGE, 6X10 |
96001-060-100-0 |
from US $0.59 |
||
