Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 32500-HM7-000 Sub-wire	32500-HM7-000	—
2	2 33101-HA8-680 Rim, headlight	33101-HA8-680	from US $54.64
3	3 33109-440-931 Spring, unit holder	33109-440-931	US $15.32
4	4 33120-HA7-740 Headlight unit	33120-HA7-740	from US $70.48
5	5 33121-HM7-700 Shade	33121-HM7-700	US $3.09
6	6 33130-HN0-670 Socket, headlight	33130-HN0-670	US $90.68
7	7 33141-HA7-670 Cover, rubber	33141-HA7-670	US $14.21
8	8 33150-HN4-671 Headlight unit	33150-HN4-671	US $150.99
9	9 34901-GT4-003 Bulb (12v 30/30w)	34901-GT4-003	from US $17.82
10	10 34901-MS2-672 Bulb (12v45/45w)	34901-MS2-672	from US $36.50
11	11 52426-KM4-003 Screw	52426-KM4-003	from US $1.92
12	12 53729-SS0-003 Clip RETURN HOSE	53729-SS0-003	from US $2.17
13	13 61301-HM7-750 Case, headlight	61301-HM7-750	US $61.95
14	14 61302-HA7-670 Collar a	61302-HA7-670	from US $4.31
15	15 61304-HM7-000 Collar	61304-HM7-000	from US $2.55
16	16 61304-292-000 Collar	61304-292-000	from US $3.40
17	17 61310-HM7-610 Bracket	61310-HM7-610	US $56.76
18	18 90010-GE0-710 Clip, tube	90010-GE0-710	from US $2.59
19	19 90101-HN1-000 Screw, adjusting	90101-HN1-000	US $2.81
20	20 90307-GJ6-003 Washer, lock (6mm)	90307-GJ6-003	from US $2.96
21	21 90690-GHB-671 Clip, cable, 25mm	90690-GHB-671	from US $1.95
22	22 92301-05016-0A Bolt, recessed, 5x16	92301-05016-0A	from US $0.44
23	23 93903-25220 Screw TAPPING, 5X12	93903-25220	from US $0.38
24	24 94050-06070 Nut	94050-06070	from US $0.52
25	25 94111-05000 Washer SPRING, 5MM	94111-05000	from US $0.37
26	26 95701-080-160-7 Bolt (95701-08016-07) FLANGE, 8X16	95701-080-160-7	from US $0.59
27	27 95701-0803507 Bolt, flange, 8x35	95701-0803507	from US $0.74

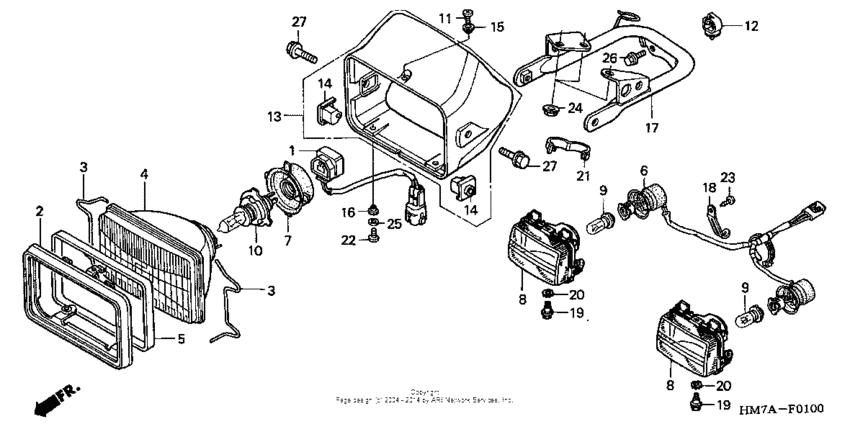

Headlight Diagram Honda TRX 400 Foreman 400 USA 13680013-788156

Headlight Diagram Honda TRX 400 Foreman 400 USA 13680013-788156
