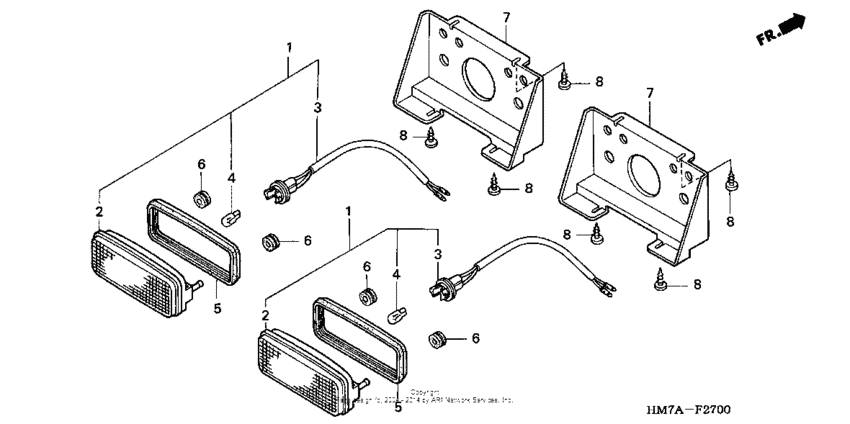

Taillight Diagram Honda TRX 400 Foreman 400
- Model code
- TRX400FW A
- Engine Capacity
- 397
- Year
- 2003
- Sales region
- USA
- Frame
- 478TE200*34400001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman 400
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33700-HN0-A60 Taillight assy. |
33700-HN0-A60 |
US $39.17 |
||
|
2
|
2
33710-HN0-A60 *33710-hb3-771 |
33710-HN0-A60 |
US $40.26 |
||
|
3
|
3
33720-HM7-000
Socket
|
33720-HM7-000 |
— | ||
|
4
|
4
34351-657-921 Bulb12V/5W) (STANLEY |
34351-657-921 |
from US $1.63 |
||
|
5
|
5
80215-HC4-000 Rubber, taillight |
80215-HC4-000 |
from US $8.32 |
||
|
6
|
6
80219-HC4-000 Rubber, taillight mounting |
80219-HC4-000 |
from US $2.72 |
||
|
7
|
7
80230-HM7-000 Cover, taillight |
80230-HM7-000 |
US $14.88 |
||
|
8
|
8
9390325110 Screw, tapping, 5x10 |
9390325110 |
from US $0.37 |
