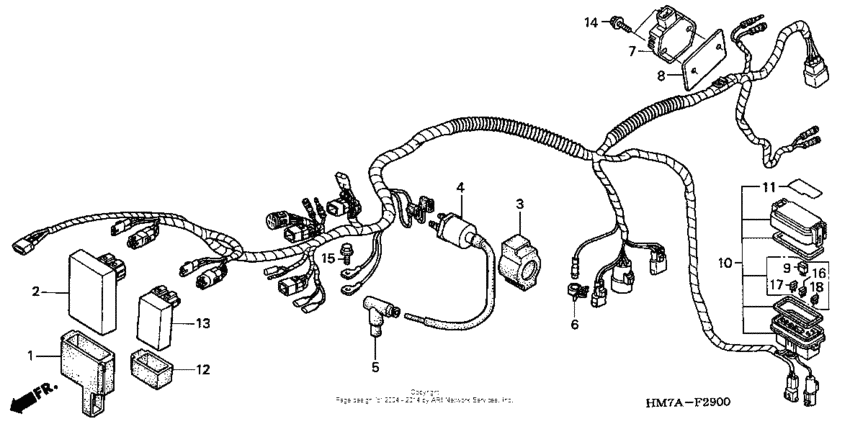

Wire harness Diagram Honda TRX 400 Foreman 400
- Model code
- TRX400FW A
- Engine Capacity
- 397
- Year
- 2003
- Sales region
- USA
- Frame
- 478TE200*34400001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman 400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30401-HA7-670 Cushion, c.d.i. unit |
30401-HA7-670 |
from US $9.92 |
||
|
2
|
2
30410-HM7-003 Module, ign cont |
30410-HM7-003 |
US $147.82 |
||
|
3
|
3
30506-KV3-771 Suspension, ignition coil |
30506-KV3-771 |
from US $4.68 |
||
|
4
|
4
30510-HM7-003 Coil, ignition |
30510-HM7-003 |
US $72.18 |
||
| replacement | |||||
|
4
|
4
30510-KJ2-405 Coil, ignition |
30510-KJ2-405 |
from US $58.34 |
||
|
4
|
4
30510-KJ2-405 Coil, ignition |
30510-KJ2-405 |
from US $58.34 |
||
|
5
|
5
30700-KY4-900 Cap assy. |
30700-KY4-900 |
from US $14.14 |
||
|
6
|
6
30701-883-000 Clip, high tension cord (8mm) |
30701-883-000 |
US $4.47 |
||
|
7
|
7
31600-HN5-671 Rectifier, regulator |
31600-HN5-671 |
from US $128.23 |
||
|
8
|
8
31601-HN0-A60 Plate |
31601-HN0-A60 |
US $31.03 |
||
|
9
|
9
31730-MAS-601 Diode assy., three way (sumitomo) |
31730-MAS-601 |
from US $11.23 |
||
|
10
|
10
32100-HM7-A40 Wire harness |
32100-HM7-A40 |
US $224.40 |
||
|
11
|
11
38215-HM7-A40 Label, fuse |
38215-HM7-A40 |
US $3.60 |
||
|
12
|
12
38401-HC4-004 Rubber |
38401-HC4-004 |
US $4.55 |
||
|
13
|
13
38710-HM7-004 Control unit, fan |
38710-HM7-004 |
from US $166.16 |
||
|
14
|
14
95701-060-200-0 Bolt |
95701-060-200-0 |
from US $0.52 |
||
|
15
|
15
96001-060-100-0 BoltFLANGE, 6X10 |
96001-060-100-0 |
from US $0.59 |
||
|
16
|
16
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.52 |
||
|
17
|
17
98200-41500 FuseMINI(15A) |
98200-41500 |
from US $0.52 |
||
|
18
|
18
98200-43000 FuseMINI (30A) |
98200-43000 |
from US $0.74 |
||
