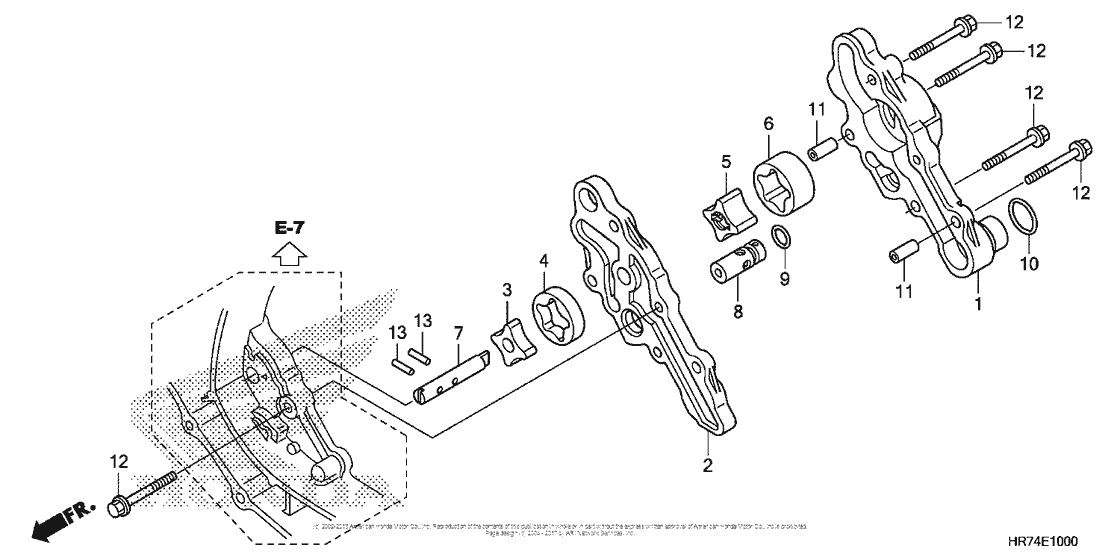

Oil Pump Diagram Honda TRX 420 Rancher 420 AT DCT IRS EPS
- Model code
- TRX420FA6 2AC
- Year
- 2017
- Sales region
- USA
- Frame
- 1HFTE474 - H4200001
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- FourTrax Rancher 420 AT DCT IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15101-HP7-A00 Body a, oil pump |
15101-HP7-A00 |
US $28.03 |
||
|
2
|
2
15102-HP7-A00 Body b, oil pump |
15102-HP7-A00 |
US $15.56 |
||
|
3
|
3
15122-HN2-003 Rotor a, oil pump |
15122-HN2-003 |
from US $14.14 |
||
|
4
|
4
15123-HN2-003 Rotor a, oil pump |
15123-HN2-003 |
from US $17 |
||
|
5
|
5
15128-HP7-A01 Rotor c, oil pump |
15128-HP7-A01 |
US $10.71 |
||
|
6
|
6
15129-HP7-A01 Rotor c, oil pump |
15129-HP7-A01 |
US $17.03 |
||
|
7
|
7
15132-HP7-A00 Shaft, oil pump |
15132-HP7-A00 |
US $13.55 |
||
|
8
|
8
15220-HP7-A00 Valve assy., relief |
15220-HP7-A00 |
from US $21.88 |
||
|
9
|
9
91313-MG7-004 O-ring (14.8x2.2) |
91313-MG7-004 |
from US $6.21 |
||
|
10
|
10
91331-PC9-003 O-ring |
91331-PC9-003 |
from US $2.37 |
||
|
11
|
11
9430108200 Dowel pin, 8x20 |
9430108200 |
from US $0.89 |
||
|
12
|
12
95701-0604000 Bolt, flange, 6x40 |
95701-0604000 |
from US $0.62 |
||
|
13
|
13
96220-40158 Roller4X15.8 |
96220-40158 |
from US $0.22 |
