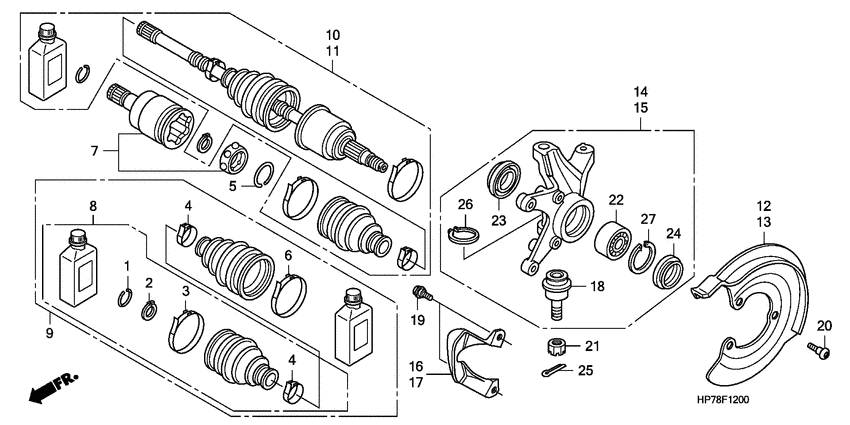

Front knuckle/front drive shaft Diagram Honda TRX 420 FourTrax 420 AT
- Model code
- TRX420FAA
- Engine Capacity
- 420
- Year
- 2010
- Sales region
- Australia
- Frame
- 1HFTE37U*A4100001 - 1HFTE37U*A4999999
- Engine
- TE37E8100001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- FourTrax Rancher 420 AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42206-HA7-671 RingSNAP |
42206-HA7-671 |
from US $1.07 |
||
|
2
|
2
42209-HC5-003 Circlip |
42209-HC5-003 |
from US $0.80 |
||
|
3
|
3
44205-HN8-A41 Band b, inboard |
44205-HN8-A41 |
US $7.91 |
||
|
4
|
4
44206-HN8-A41 Band a, inboard |
44206-HN8-A41 |
US $7.91 |
||
|
5
|
5
44207-HN8-A41 Ring, snap |
44207-HN8-A41 |
US $7.99 |
||
|
6
|
6
44208-HP5-601 Band, outboard |
44208-HP5-601 |
US $8.40 |
||
|
7
|
7
44220-HP5-601 Joint, inboard |
44220-HP5-601 |
US $121.45 |
||
|
8
|
8
44230-HN8-A41 Boot set, inboard |
44230-HN8-A41 |
US $60.06 |
||
|
9
|
9
44240-HP5-601 Boot set |
44240-HP5-601 |
US $79.54 |
||
|
10
|
10
44250-HP7-A31 Shaft set, r. fr. |
44250-HP7-A31 |
US $182.39 |
||
|
11
|
11
44350-HP7-A31 Shaft set, l. fr. |
44350-HP7-A31 |
US $182.39 |
||
|
12
|
12
45255-HP5-600 Splash guard, r. |
45255-HP5-600 |
US $15.35 |
||
|
13
|
13
45256-HP5-600 Splash guard, l. |
45256-HP5-600 |
US $15.35 |
||
|
14
|
14
51200-HP5-600 Knuckle assy., r. |
51200-HP5-600 |
US $253.91 |
||
|
15
|
15
51250-HP5-600 Knuckle assy., l. |
51250-HP5-600 |
from US $253.91 |
||
|
16
|
16
51325-HN2-B70 Guard, r. fr. |
51325-HN2-B70 |
US $4.64 |
||
|
17
|
17
51326-HN2-B70 Guard, l. fr. |
51326-HN2-B70 |
US $4.64 |
||
|
18
|
18
51355-HP5-601 Joint a, arm ball |
51355-HP5-601 |
from US $21.32 |
||
|
19
|
19
90111-KT1-780 Bolt, flange (6mm) |
90111-KT1-780 |
from US $3.80 |
||
|
20
|
20
90114-HP0-A00 Bolt, socket (6x15) |
90114-HP0-A00 |
from US $1.80 |
||
|
21
|
21
90310-HB9-000 Nut, castle (12mm) |
90310-HB9-000 |
from US $3.63 |
||
|
22
|
22
91051-HC5-003 Bearing (30x50x20) |
91051-HC5-003 |
from US $51.41 |
||
|
23
|
23
91209-HN2-003 Dust seal (40x58x7) |
91209-HN2-003 |
from US $11.54 |
||
|
24
|
24
91254-HP5-601 Dust seal (38x50x6) |
91254-HP5-601 |
from US $6.36 |
||
|
25
|
25
94201-30180 PinSPLIT, 3.0X18 |
94201-30180 |
from US $0.37 |
||
|
26
|
26
9451432000 Circlip (32mm) |
9451432000 |
from US $0.81 |
||
|
27
|
27
9452050000 Circlip, internal, 50mm |
9452050000 |
from US $1.48 |
