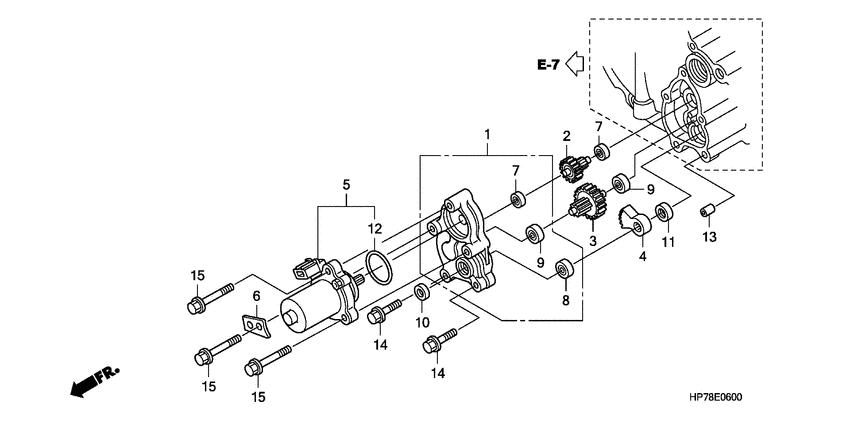

Control motor Diagram Honda TRX 420 FourTrax 420 AT EPS
- Model code
- TRX420FPAA
- Engine Capacity
- 420
- Year
- 2010
- Sales region
- Australia
- Frame
- 1HFTE37U*A4150001 - 1HFTE37U*A4999999
- Engine
- TE37E8100001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- FourTrax Rancher 420 AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11335-HP7-A00 Cvr, reduction gear |
11335-HP7-A00 |
from US $50.59 |
||
|
2
|
2
24615-HP7-A01
Gear (41t/7t)
|
24615-HP7-A01 |
— | ||
| replacement | |||||
|
2
|
2
24615-HR6-MF0 Gear (41T/7T) |
24615-HR6-MF0 |
from US $64.33 |
||
|
3
|
3
24616-HP7-A01 Gear (32t/10t) |
24616-HP7-A01 |
US $78.17 |
||
|
4
|
4
24617-HP7-A01 Gear (45t) |
24617-HP7-A01 |
US $7.44 |
||
|
5
|
5
31300-HP5-601
Motor assy., control
|
31300-HP5-601 |
— | ||
| replacement | |||||
|
5
|
5
31300-HP5-602 Motor Assy., Control |
31300-HP5-602 |
from US $273.36 |
||
|
6
|
6
32160-HP7-A00 Stay b, clip |
32160-HP7-A00 |
US $8.91 |
||
|
7
|
7
91050-HN0-A11 Bearing (696zz) |
91050-HN0-A11 |
from US $7.25 |
||
|
8
|
8
91050-HN7-003 Bearing (699zz) |
91050-HN7-003 |
from US $8.88 |
||
|
9
|
9
91060-HN0-A11 Bearing (626zz) |
91060-HN0-A11 |
from US $7.84 |
||
|
10
|
10
91201-HN8-003 Oil seal (9x18x7) |
91201-HN8-003 |
from US $4.44 |
||
|
11
|
11
91205-KF0-003 Oil seal, 12x20x5 (arai) |
91205-KF0-003 |
from US $2.47 |
||
|
12
|
12
91351-HM8-A51 O-ring, motor |
91351-HM8-A51 |
from US $3.33 |
||
|
13
|
13
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
14
|
14
95701-0603500 Bolt, flange, 6x35 |
95701-0603500 |
from US $0.59 |
||
|
15
|
15
95701-060-500-0 BoltFLANGE, 6X50 |
95701-060-500-0 |
from US $0.74 |
||
