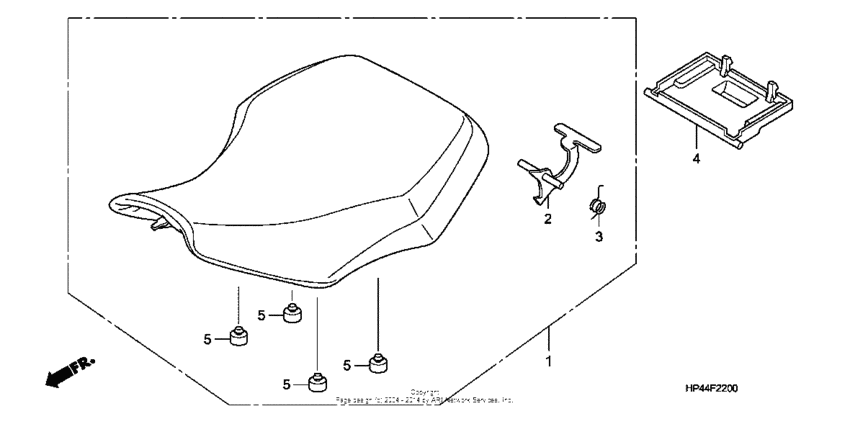

Seat Diagram Honda TRX 420 Rancher 420
- Model code
- TRX420TM A
- Engine Capacity
- 420
- Year
- 2008
- Sales region
- USA
- Frame
- 1HFTE340*84100001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- FourTrax Rancher 420
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77100-HP7-A00ZA Seat *nh1l* |
77100-HP7-A00ZA |
US $198.61 |
||
|
2
|
2
77105-HP5-601 Lever, seat lock |
77105-HP5-601 |
US $17.27 |
||
|
3
|
3
77107-HA0-000 Spring, seat lock |
77107-HA0-000 |
from US $3.18 |
||
|
4
|
4
77110-HP5-600 Box, owner`s manual |
77110-HP5-600 |
US $19.13 |
||
|
5
|
5
77206-GF0-000 Rubber, seat setting |
77206-GF0-000 |
from US $3.18 |
