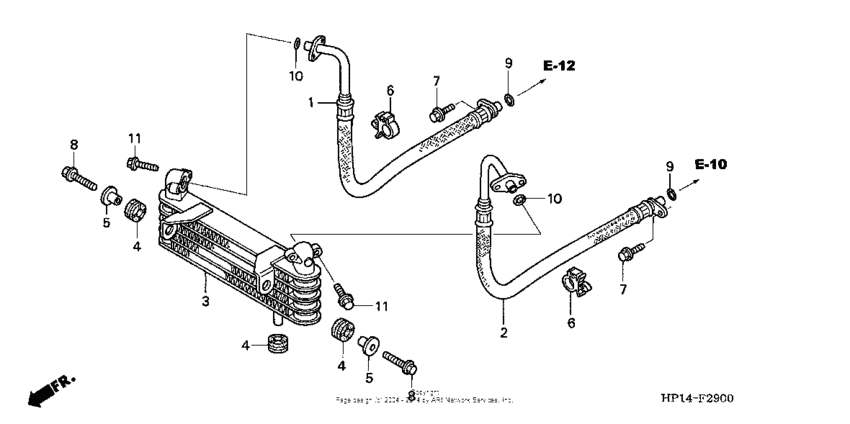

Oil cooler Diagram Honda TRX 450 Sportrax 450 R
- Model code
- TRX450R A
- Engine Capacity
- 450
- Year
- 2004
- Sales region
- USA
- Frame
- 478TE300*4A000001 - 478TE300*4A099999
- Power
- 41,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Sportrax TRX 450 R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15510-HP1-000 Hose a, oil |
15510-HP1-000 |
US $175.44 |
||
|
2
|
2
15520-HP1-000 Hose b, oil |
15520-HP1-000 |
US $175.19 |
||
|
3
|
3
15600-HP1-003 Cooler, oil |
15600-HP1-003 |
US $112.56 |
||
|
4
|
4
19051-KA3-830 Rubber, radiator mounting |
19051-KA3-830 |
from US $1.89 |
||
|
5
|
5
19052-MGH-640 Collar |
19052-MGH-640 |
from US $2.03 |
||
|
6
|
6
53781-SE0-952 ClipRETURN HOSE |
53781-SE0-952 |
from US $2.37 |
||
|
7
|
7
90004-GHB-640 Bolt, flange (6x18) |
90004-GHB-640 |
from US $2.15 |
||
|
8
|
8
90004-GHB-660 Bolt, flange (6x22) |
90004-GHB-660 |
from US $1.92 |
||
|
9
|
9
91314-HN6-000 O-ring (11x2.4) |
91314-HN6-000 |
from US $2.34 |
||
|
10
|
10
91314-ME5-003 O-ring, 10x2.6 (arai) |
91314-ME5-003 |
from US $3.85 |
||
|
11
|
11
96001-060-200-0 BoltFLANGE, 6X20 |
96001-060-200-0 |
from US $0.59 |
