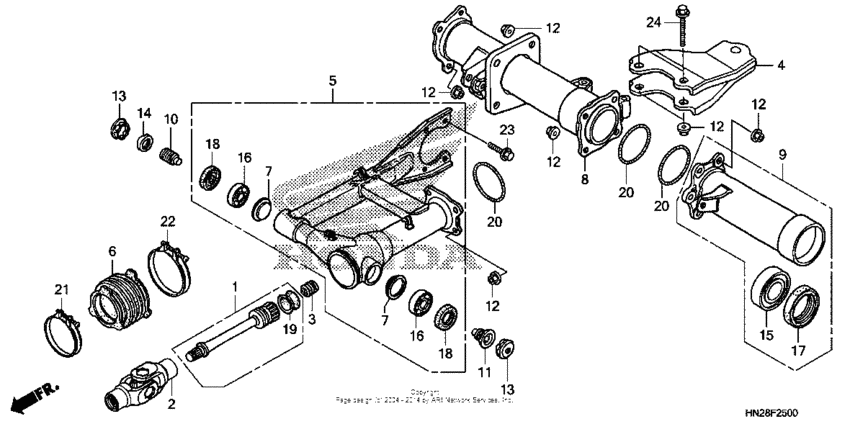

Swingarm Diagram Honda TRX 500 Rubicon 500
- Model code
- TRX500FA A
- Engine Capacity
- 500
- Year
- 2011
- Sales region
- USA
- Frame
- 1HFTE260*B4100001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman Rubicon 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40200-HP0-A00 Shaft, propeller |
40200-HP0-A00 |
US $82.09 |
||
|
2
|
2
40210-HN7-010 Joint, yoke |
40210-HN7-010 |
from US $71.11 |
||
|
3
|
3
40215-HN0-671 Spring |
40215-HN0-671 |
US $4.79 |
||
|
4
|
4
50810-HP0-A00 Hitch, trailer |
50810-HP0-A00 |
US $46.84 |
||
|
5
|
5
52100-HP0-A50 Swingarm assy., rr. |
52100-HP0-A50 |
US $387.96 |
||
|
6
|
6
52101-HM7-000 Boot, joint |
52101-HM7-000 |
US $17.44 |
||
|
7
|
7
52112-MA1-300 Holder |
52112-MA1-300 |
from US $4.44 |
||
|
8
|
8
52210-HP0-A00 Pipe, r. housing |
52210-HP0-A00 |
US $651.47 |
||
|
9
|
9
52300-HN2-000 Pipe, l. housing |
52300-HN2-000 |
US $938.19 |
||
|
10
|
10
90121-HM5-930 Bolt a, pivot |
90121-HM5-930 |
US $11.36 |
||
|
11
|
11
90122-HM5-930 Bolt b, pivot |
90122-HM5-930 |
US $13.09 |
||
|
12
|
12
90305-HC0-770 Nut, self-lock, 10mm |
90305-HC0-770 |
from US $2.66 |
||
|
13
|
13
90312-HM5-670 Cap, lock nut |
90312-HM5-670 |
US $14.50 |
||
|
14
|
14
90355-469-000 Nut, rr. |
90355-469-000 |
from US $10.66 |
||
|
15
|
15
91055-HN5-681 Bearing (32x58x13uu) |
91055-HN5-681 |
from US $19.31 |
||
|
16
|
16
91066-HC4-004 Bearing (7203) |
91066-HC4-004 |
from US $13.63 |
||
|
17
|
17
91255-HA0-681 Oil seal (42x58x10) |
91255-HA0-681 |
from US $9.34 |
||
|
18
|
18
91268-HN0-A01 Dust seal (26x40x5) |
91268-HN0-A01 |
from US $5.48 |
||
|
19
|
19
91302-HM7-003 Seal a, rubber |
91302-HM7-003 |
from US $5.48 |
||
|
20
|
20
91320-HM7-702 O-ring (75x3.2) |
91320-HM7-702 |
from US $3.63 |
||
|
21
|
21
9501874250 Band (74) |
9501874250 |
from US $3.55 |
||
|
22
|
22
9501890250 Band (90) |
9501890250 |
from US $3.55 |
||
|
23
|
23
95701-100-200-0 BoltFLANGE, 10X20 |
95701-100-200-0 |
from US $0.74 |
||
|
24
|
24
95701-1006000 Bolt, flange, 10x60 |
95701-1006000 |
from US $1.04 |
