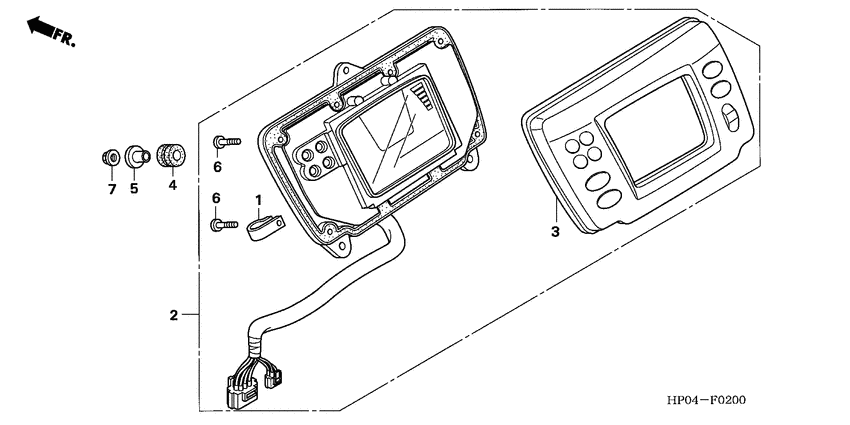

Meter (TRX500FA5/6/7/8) Diagram Honda TRX 500 Foreman Hydrostatic 500
- Model code
- TRX500FA5
- Engine Capacity
- 500
- Year
- 2005
- Sales region
- Australia
- Frame
- 1HFTE26U*54400001 - 1HFTE26U*54499999
- Engine
- TE26E8300001 - TE26E8399999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman Hydrostatic 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37121-ML7-671 Clamp |
37121-ML7-671 |
from US $2.29 |
||
|
2
|
2
37200-HN2-C21
Meter assy
|
37200-HN2-C21 |
— | ||
|
3
|
3
37201-HP0-A01 Case assy. (upper) |
37201-HP0-A01 |
US $189.41 |
||
| replacements | |||||
|
3
|
3
37201-HP0-A71 Case assy. (upper) |
37201-HP0-A71 |
US $228.77 |
||
|
3
|
3
37201-HN2-B41 Case assy. (upper) |
37201-HN2-B41 |
US $228.77 |
||
|
4
|
4
37215-HM5-670 Rubber, mounting |
37215-HM5-670 |
US $2.86 |
||
|
5
|
5
83601-357-000 Colr, cover setting |
83601-357-000 |
from US $4.44 |
||
|
6
|
6
93903-22420 ScrewTAPPING, 3X16 |
93903-22420 |
from US $0.37 |
||
|
7
|
7
94050-06070 Nut |
94050-06070 |
from US $0.52 |
||
