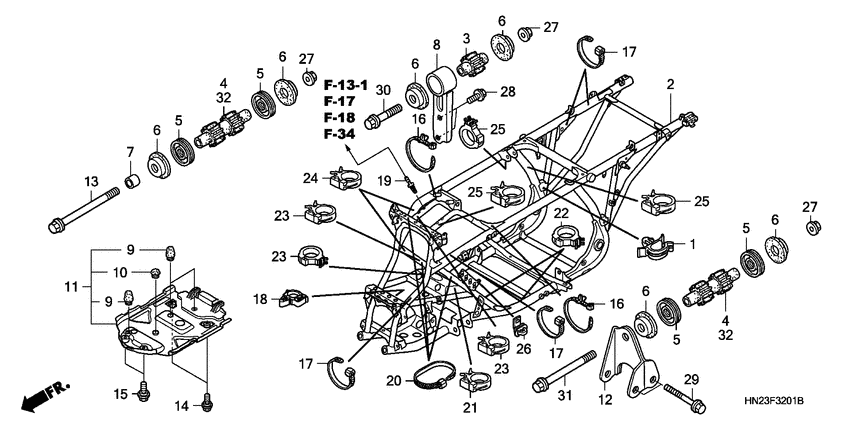

Frame body (TRX500FA5/6/7/8) Diagram Honda TRX 500 Foreman Hydrostatic 500
- Model code
- TRX500FA6
- Engine Capacity
- 500
- Year
- 2006
- Sales region
- Australia
- Frame
- 1HFTE26U*64500001 - 1HFTE26U*64599999
- Engine
- TE26E8400001 - TE26E8499999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman Hydrostatic 500
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
32161-393-003 Clip, wire harness |
32161-393-003 |
from US $2.64 |
||
2
|
2
50100-HN2-A20
Frame
|
50100-HN2-A20 |
— | ||
3
|
3
50201-HN2-000 Rubber |
50201-HN2-000 |
from US $11.92 |
||
5
|
5
50203-HM7-003 Dust seal |
50203-HM7-003 |
from US $10.06 |
||
6
|
6
50204-HM7-003 Rubber c, mounting |
50204-HM7-003 |
from US $8.78 |
||
7
|
7
50205-HM8-000 Collar, eng hgr |
50205-HM8-000 |
from US $5.18 |
||
8
|
8
50351-HN2-000 Plate, head hanger |
50351-HN2-000 |
US $16.34 |
||
9
|
9
50352-HM5-730 Rubber a, stopper |
50352-HM5-730 |
US $11.44 |
||
10
|
10
50354-HM5-730 Rubber b, stopper |
50354-HM5-730 |
US $10.90 |
||
11
|
11
50360-HN2-B70 Guard assy., engine |
50360-HN2-B70 |
US $22.03 |
||
12
|
12
50363-HN2-000 Hanger, eng (lower) |
50363-HN2-000 |
US $76.08 |
||
13
|
13
90103-147-000 Bolt, engine hanger |
90103-147-000 |
from US $7.84 |
||
14
|
14
90113-GF0-000 Bolt, flange (6mm) |
90113-GF0-000 |
from US $2.59 |
||
15
|
15
90186-GBC-000 Bolt, flange (8x18) |
90186-GBC-000 |
from US $1.34 |
||
16
|
16
90649-SC2-003 BandWIRE HARNESS (NATURAL) (150MM) |
90649-SC2-003 |
from US $2.73 |
||
17
|
17
90651-KV6-003 Band, wire, 165mm (black) |
90651-KV6-003 |
from US $2.93 |
||
18
|
18
90652-HC4-003 ClampHARNESS |
90652-HC4-003 |
from US $1.98 |
||
19
|
19
90652-HF7-003 Joint, breather tube |
90652-HF7-003 |
from US $4.74 |
||
20
|
20
90652-KT1-771 Band, wire (black) |
90652-KT1-771 |
from US $2.29 |
||
21
|
21
90690-GHB-641 Clip, cable, 10mm |
90690-GHB-641 |
from US $1.95 |
||
22
|
22
90690-GHB-651 Clip, cable, 15mm |
90690-GHB-651 |
from US $1.78 |
||
23
|
23
90690-GHB-661 Clip, cable, 20mm |
90690-GHB-661 |
from US $1.95 |
||
24
|
24
90690-GHB-671 Clip, cable, 25mm |
90690-GHB-671 |
from US $1.87 |
||
25
|
25
90690-GHB-681 Clip, cable (30mm) |
90690-GHB-681 |
from US $1.78 |
||
26
|
26
91565-SEL-003 ClipCOUPLER(BLACK) |
91565-SEL-003 |
from US $1.70 |
||
27
|
27
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
28
|
28
95701-080-200-0 Bolt, flange, 8x20 |
95701-080-200-0 |
from US $0.62 |
||
29
|
29
95701-0806000 Bolt, flange, 8x60 |
95701-0806000 |
from US $0.81 |
||
30
|
30
95701-1006000 Bolt, flange, 10x60 |
95701-1006000 |
from US $1.04 |
||
31
|
31
95801-1012000 Bolt, flange, 10x120 |
95801-1012000 |
from US $1.72 |
||
32
|
32
50202-HN2-305 Rubber set (lower) |
50202-HN2-305 |
from US $29.22 |
