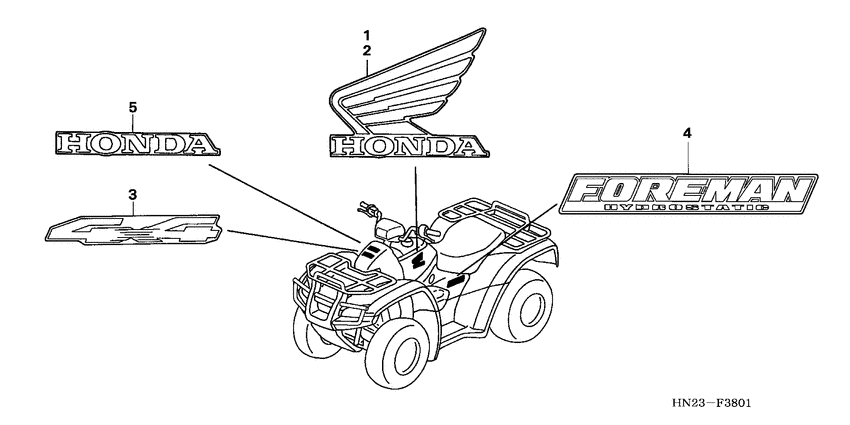

Mark (TRX500FA5/6/7/8) Diagram Honda TRX 500 Foreman Hydrostatic 500
- Model code
- TRX500FA7
- Engine Capacity
- 500
- Year
- 2007
- Sales region
- Australia
- Frame
- 1HFTE26U*74600001 - 1HFTE26U*74699999
- Engine
- TE26E8500001 - TE26E8599999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman Hydrostatic 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87121-HP0-A00ZA Emblem, r. (type1) |
87121-HP0-A00ZA |
US $29.24 |
||
|
1
|
1
87121-HP0-A00ZB Emblem, r. (type2) |
87121-HP0-A00ZB |
US $46.95 |
||
|
1
|
1
87121-HP0-A50ZA Emblem, r. (type1) |
87121-HP0-A50ZA |
US $3.84 |
||
|
2
|
2
87122-HN2-A40ZA Emblem, l. (type1) |
87122-HN2-A40ZA |
US $85.10 |
||
|
2
|
2
87122-HN2-A40ZB Emblem, l. (type2) |
87122-HN2-A40ZB |
US $46.46 |
||
|
2
|
2
87122-HN2-A60ZA Emblem, l. (type1) |
87122-HN2-A60ZA |
US $45.15 |
||
|
3
|
3
87124-HN7-A00ZA Mark (4x4) (type1) |
87124-HN7-A00ZA |
US $41.74 |
||
|
3
|
3
87124-HN7-A00ZC Mark (4x4) (type3) |
87124-HN7-A00ZC |
US $45.70 |
||
|
3
|
3
87124-HP0-A50ZA Mark (4x4) (type1) |
87124-HP0-A50ZA |
US $42.19 |
||
|
4
|
4
87126-HN2-U20ZA Mark (type1) |
87126-HN2-U20ZA |
US $70.50 |
||
|
4
|
4
87126-HN2-U20ZB Mark (type2) |
87126-HN2-U20ZB |
US $42.08 |
||
|
4
|
4
87126-HN2-U30ZA
Mark
|
87126-HN2-U30ZA |
— | ||
|
5
|
5
87127-HN7-A00ZA Mark, honda (type1) |
87127-HN7-A00ZA |
US $22.70 |
||
|
5
|
5
87127-HN7-A00ZB Mark, honda (type3) |
87127-HN7-A00ZB |
US $22.90 |
||
|
5
|
5
87127-HN7-A00ZC Mark, honda (type4) |
87127-HN7-A00ZC |
US $45.88 |
