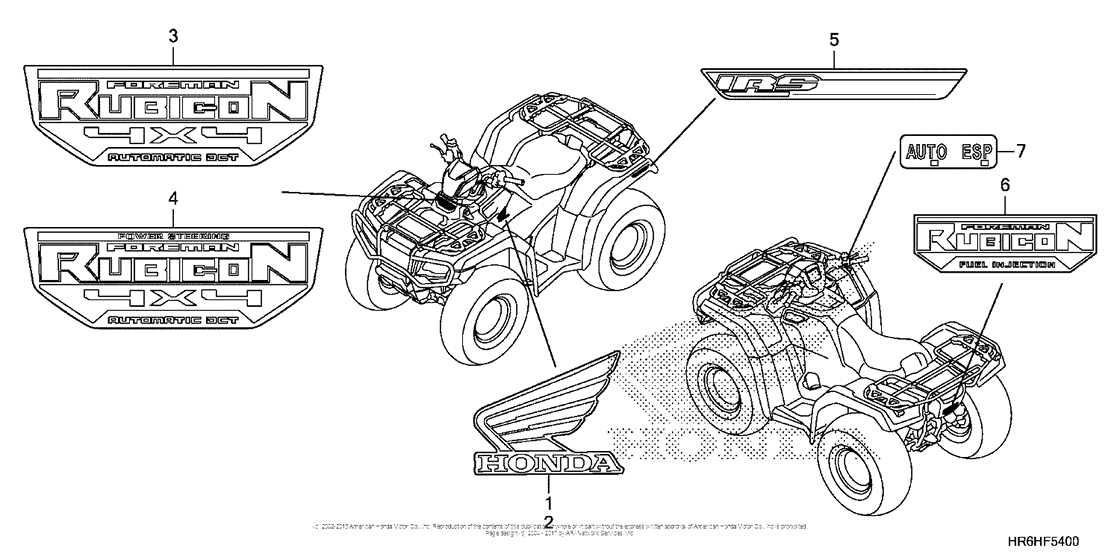

Mark + Emblem Diagram Honda TRX 500 Foreman Rubicon 500 Deluxe DCT EPS
- Model code
- TRX500FA7 2AC
- Engine Capacity
- 500
- Year
- 2017
- Sales region
- USA
- Frame
- 1HFTE46A - H4200001
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman Rubicon 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87121-HP0-A20ZC
Emblem, R. Fuel Tank Cover (Type6) | Close Range Camo Yra05L;
|
87121-HP0-A20ZC |
— | ||
|
2
|
2
87122-HP0-A20ZC EMBLEM, L. (TYPE6) |
87122-HP0-A20ZC |
US $11.37 |
||
|
4
|
4
86611-HR6-A70ZB MARK, FR. (TYPE1) |
86611-HR6-A70ZB |
US $7.19 |
||
|
5
|
5
86801-HR6-B70ZA MARK, RR. (TYPE1) |
86801-HR6-B70ZA |
US $145.37 |
||
|
6
|
6
86802-HR6-A60ZB MARK (TYPE1) |
86802-HR6-A60ZB |
US $67.46 |
||
|
7
|
7
87516-HR3-A60 Mark, select |
87516-HR3-A60 |
US $0.97 |
