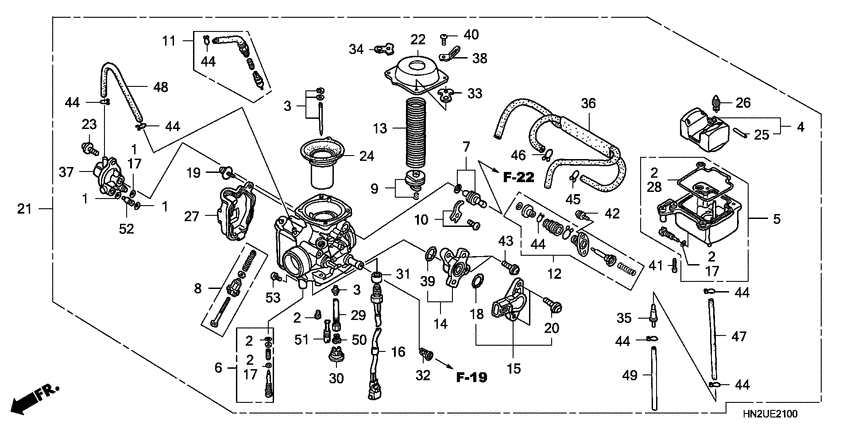

Carburetor Diagram Honda TRX 500 Foreman Hydrostatic 500
- Model code
- TRX500FAA
- Engine Capacity
- 500
- Year
- 2010
- Sales region
- Australia
- Frame
- 1HFTE26U*A4900001 - 1HFTE26U*A4999999
- Engine
- TE26E8800001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman Hydrostatic 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-HM7-670
Gasket set
|
16010-HM7-670 |
— | ||
| replacement | |||||
|
1
|
1
16041-MZ5-600 Gasket set c |
16041-MZ5-600 |
from US $14.50 |
||
|
2
|
2
16010-HN7-003 Gasket set |
16010-HN7-003 |
from US $17.04 |
||
|
3
|
3
16012-HN2-U11 Needle set, jet |
16012-HN2-U11 |
US $33.49 |
||
|
4
|
4
16013-HN8-003 Float set |
16013-HN8-003 |
from US $32.37 |
||
|
5
|
5
16015-HP0-A01 Chamber set, float |
16015-HP0-A01 |
US $46.85 |
||
|
6
|
6
16016-HN2-A21 Screw set |
16016-HN2-A21 |
US $22.92 |
||
|
7
|
7
16026-MR1-004 Joint set |
16026-MR1-004 |
from US $23.26 |
||
|
8
|
8
16028-HP0-A01 Screw set |
16028-HP0-A01 |
US $24.31 |
||
|
9
|
9
16037-HN2-003 Plate set, valve |
16037-HN2-003 |
from US $14.92 |
||
|
10
|
10
16038-HN8-003 Plate set, stay |
16038-HN8-003 |
from US $7.39 |
||
|
11
|
11
16046-HN2-003 Valve, starter |
16046-HN2-003 |
US $67.64 |
||
|
12
|
12
16048-HM7-700 Pump set |
16048-HM7-700 |
from US $74.12 |
||
| replacement | |||||
|
12
|
12
16048-HN7-003 Pump set |
16048-HN7-003 |
from US $91.53 |
||
|
13
|
13
16050-HN2-A21 Spring |
16050-HN2-A21 |
US $11.68 |
||
|
14
|
14
16060-HN2-A21 Spacer set |
16060-HN2-A21 |
US $36.52 |
||
|
15
|
15
16061-HP0-A01 Sensor set, throttle |
16061-HP0-A01 |
US $238.66 |
||
|
16
|
16
16070-HN2-A21 Heater assy |
16070-HN2-A21 |
US $82.67 |
||
|
17
|
17
16075-GHB-640 O-ring (1.3x4.3) |
16075-GHB-640 |
from US $1.78 |
||
|
18
|
18
16075-HN2-A21 O-ring |
16075-HN2-A21 |
US $4.42 |
||
|
19
|
19
16080-HC0-003 Screw, pan |
16080-HC0-003 |
from US $2.70 |
||
|
20
|
20
16083-HP0-A01 Bolt, break head |
16083-HP0-A01 |
from US $6.79 |
||
|
21
|
21
16100-HN2-U12 Carburetor (ve6af b) |
16100-HN2-U12 |
US $415.58 |
||
|
22
|
22
16107-HN2-003 Top |
16107-HN2-003 |
US $41.02 |
||
|
23
|
23
16108-MW0-750 Screw |
16108-MW0-750 |
from US $3.25 |
||
|
24
|
24
16111-HN2-003 Piston, vacuum |
16111-HN2-003 |
from US $94.35 |
||
|
25
|
25
16152-HN8-003 Pin, arm |
16152-HN8-003 |
from US $3.32 |
||
|
26
|
26
16155-HN7-003 Valve, float |
16155-HN7-003 |
from US $18.18 |
||
|
27
|
27
16157-HN8-003 Cover, body |
16157-HN8-003 |
from US $23.95 |
||
|
28
|
28
16163-MEA-671 Gasket |
16163-MEA-671 |
from US $25.98 |
||
|
29
|
29
16165-HN2-003 Holder, needle jet |
16165-HN2-003 |
from US $19.02 |
||
|
30
|
30
16168-HC4-003 Holder, jet |
16168-HC4-003 |
from US $8.55 |
||
|
31
|
31
16172-KEB-610 Collar, setting |
16172-KEB-610 |
from US $4.47 |
||
|
32
|
32
16176-MW3-A80 Screen |
16176-MW3-A80 |
from US $8.88 |
||
|
33
|
33
16178-HP0-A01 Binder |
16178-HP0-A01 |
US $3.09 |
||
|
34
|
34
16179-HP0-A01 Binder |
16179-HP0-A01 |
US $3.09 |
||
|
35
|
35
16180-HC4-003 Valve, one-way |
16180-HC4-003 |
from US $14.65 |
||
|
36
|
36
16196-HP0-A01 Tube, air vent |
16196-HP0-A01 |
US $10.27 |
||
|
37
|
37
16510-MBW-601 Valve assy., air cut |
16510-MBW-601 |
US $142.39 |
||
|
38
|
38
17191-MT2-740 Clip, plate |
17191-MT2-740 |
from US $2.46 |
||
|
39
|
39
91304-PT0-000 O-ring14.8X1.9 |
91304-PT0-000 |
from US $2.34 |
||
|
40
|
40
93500-040-081-H ScrewPAN, 4X8 |
93500-040-081-H |
from US $0.37 |
||
| replacement | |||||
|
40
|
40
93500-040-080-H ScrewPAN, 4X8 |
93500-040-080-H |
from US $0.37 |
||
|
41
|
41
93500-040-141-H ScrewPAN, 4X14 |
93500-040-141-H |
from US $0.37 |
||
| replacement | |||||
|
41
|
41
93500-040-140-H ScrewPAN, 4X14 |
93500-040-140-H |
from US $0.37 |
||
|
42
|
42
93892-040-121-8 Screw-washer4X12 |
93892-040-121-8 |
from US $0.44 |
||
| replacement | |||||
|
42
|
42
93892-040-120-8 Screw-washer4X12 |
93892-040-120-8 |
from US $0.49 |
||
|
43
|
43
93892-050-141-8 Screw-washer5X14 |
93892-050-141-8 |
US $0.44 |
||
| replacement | |||||
|
43
|
43
93892-050-140-8 Screw-washer5X14 |
93892-050-140-8 |
from US $0.47 |
||
|
44
|
44
9500202079 Clip, tube (b7) |
9500202079 |
from US $0.47 |
||
|
45
|
45
9500202089 Clip, tube (b8) |
9500202089 |
from US $0.44 |
||
|
46
|
46
9500202659 Clip, tube (b6.5) |
9500202659 |
from US $0.44 |
||
|
47
|
47
95005-350-605-0
Tube
|
95005-350-605-0 |
— | ||
|
48
|
48
95005-351-102-0 Tube,3.5x110 |
95005-351-102-0 |
US $0.89 |
||
| replacement | |||||
|
48
|
48
95005-350-0120M Bulk hose (3.5x1000) |
95005-350-0120M |
from US $5.70 |
||
|
49
|
49
95005-352-005-0 Tube 3.5x200 |
95005-352-005-0 |
US $0.89 |
||
|
50
|
50
99101-HP01620 Jet, main (#162) |
99101-HP01620 |
US $10.34 |
||
|
51
|
51
99104-HN20450 Jet, slow (#45) |
99104-HN20450 |
from US $6.51 |
||
| replacement | |||||
|
51
|
51
99104-KPF0450 Jet,slow #45 |
99104-KPF0450 |
from US $6.51 |
||
|
52
|
52
99108-MW01002 Jet, slow air (#100) |
99108-MW01002 |
from US $5.03 |
||
|
53
|
53
99112-HN20850 Jet (#85) |
99112-HN20850 |
from US $7.84 |
||
