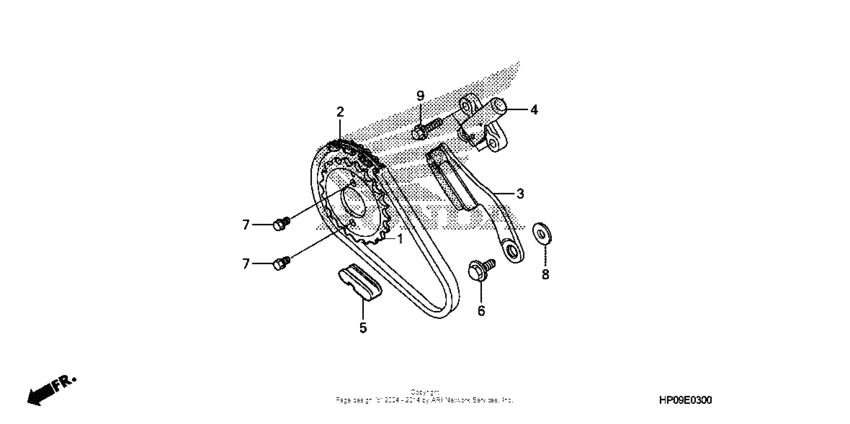

Cam chain Diagram Honda TRX 500 Foreman 500 ES
- Model code
- TRX500FE A
- Engine Capacity
- 500
- Year
- 2009
- Sales region
- USA
- Frame
- 1HFTE317*94400001 - 1HFTE317*94499999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman 500 ES
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14321-HP0-A00 Sprocket, cam (38t) |
14321-HP0-A00 |
US $62.10 |
||
|
2
|
2
14401-HP0-A01 Chain, cam |
14401-HP0-A01 |
from US $28.30 |
||
|
3
|
3
14510-HP0-A00 Tensioner, cam chain |
14510-HP0-A00 |
US $34.99 |
||
|
4
|
4
14540-HN5-671 Adjuster, tensioner |
14540-HN5-671 |
from US $27.86 |
||
|
5
|
5
14621-HP0-A00 Guide, cam chain |
14621-HP0-A00 |
from US $6.33 |
||
|
6
|
6
90023-MR5-670 Bolt |
90023-MR5-670 |
from US $1.85 |
||
|
7
|
7
90082-HA0-000 Bolt (7x10.5) |
90082-HA0-000 |
from US $2.59 |
||
|
8
|
8
90417-360-000 Washer, drum stopper |
90417-360-000 |
from US $2.22 |
||
|
9
|
9
95701-0602200 Bolt, flange, 6x22 |
95701-0602200 |
from US $0.59 |
