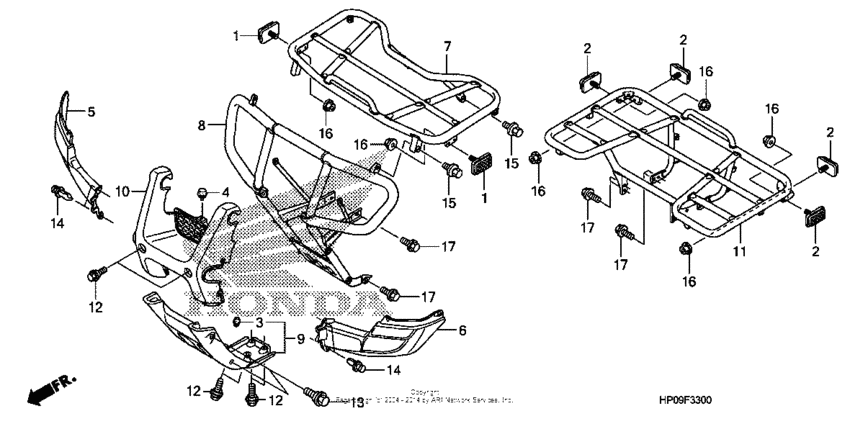

Carrier Diagram Honda TRX 500 Foreman 500 ES
- Model code
- TRX500FE A
- Engine Capacity
- 500
- Year
- 2009
- Sales region
- USA
- Frame
- 1HFTE317*94400001 - 1HFTE317*94499999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman 500 ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
50352-HM5-730 Rubber a, stopper |
50352-HM5-730 |
US $26.35 |
||
|
4
|
4
50505-GA7-730 Rubber, stand stopper |
50505-GA7-730 |
from US $2.22 |
||
|
5
|
5
66300-HP0-A00ZA Grille, r. fr. *nh1* |
66300-HP0-A00ZA |
US $30.24 |
||
|
6
|
6
66500-HP0-A00ZA Grille, l. fr. *nh1* |
66500-HP0-A00ZA |
US $30.24 |
||
|
7
|
7
81100-HP0-A00ZA Carrier, fr. *nh1* |
81100-HP0-A00ZA |
US $374.94 |
||
|
8
|
8
81150-HP0-A50ZA Pipe, fr. *nh456m*Adventure green G152; Chaos black metallic-r NHA79MR; Patriot red R232; Natural camo YRA02L; |
81150-HP0-A50ZA |
US $304.67 |
||
|
9
|
9
81160-HP0-A50ZA Plate, fr. *nha44mr*Adventure green G152; Chaos black metallic-r NHA79MR; Patriot red R232; |
81160-HP0-A50ZA |
US $187.41 |
||
|
10
|
10
81170-HN2-B70ZA Guard, fr. *nh1* |
81170-HN2-B70ZA |
US $13.40 |
||
|
11
|
11
81300-HP0-A00ZA Carrier, rr. *nh1* |
81300-HP0-A00ZA |
US $1,709.82 |
||
|
12
|
12
90111-187-000 BoltFLANGE, 6MM |
90111-187-000 |
from US $4 |
||
|
13
|
13
90186-GBC-000 Bolt, flange (8x18) |
90186-GBC-000 |
from US $1.55 |
||
|
14
|
14
90653-HC4-900 Clip, mudguard |
90653-HC4-900 |
from US $1.80 |
||
|
15
|
15
93401-080-160-7 Bolt-washer8X16 |
93401-080-160-7 |
from US $0.70 |
||
|
17
|
17
95701-080-160-7 Bolt (95701-08016-07)FLANGE, 8X16 |
95701-080-160-7 |
from US $0.59 |
