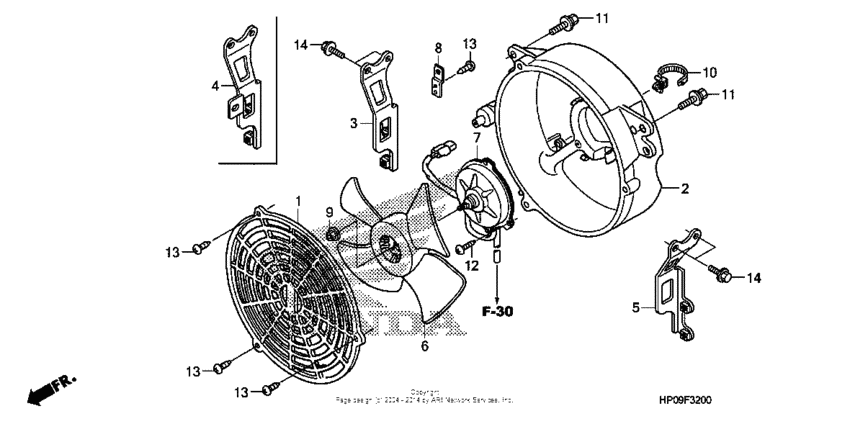

Cooling fan Diagram Honda TRX 500 Foreman 500 ES
- Model code
- TRX500FE A
- Engine Capacity
- 500
- Year
- 2009
- Sales region
- USA
- Frame
- 1HFTE317*94400001 - 1HFTE317*94499999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman 500 ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19014-HM7-000 Cover, shroud |
19014-HM7-000 |
US $19.21 |
||
|
2
|
2
19015-HP0-A00 Shroud, cooling fan |
19015-HP0-A00 |
US $19.16 |
||
|
3
|
3
19018-HP0-A50 Stay, r. cooling fan |
19018-HP0-A50 |
US $9.79 |
||
|
5
|
5
19019-HP0-A50 Stay, l. cooling fan |
19019-HP0-A50 |
US $9.82 |
||
|
6
|
6
19020-HN7-000 Fan, cooling |
19020-HN7-000 |
US $24.63 |
||
|
7
|
7
19030-HP0-B01 Motor assy., fan |
19030-HP0-B01 |
from US $249.22 |
||
|
8
|
8
50327-HN5-670 Stay a, connector |
50327-HN5-670 |
US $5.39 |
||
|
9
|
9
90315-MK3-003 Nut, serrate (5mm) |
90315-MK3-003 |
from US $2.15 |
||
|
10
|
10
90672-SB2-003 StrapCABLE, 105MM (BLACK) |
90672-SB2-003 |
US $8.81 |
||
|
11
|
11
93404-060-160-7 Bolt-washer6X16 |
93404-060-160-7 |
from US $0.52 |
||
|
12
|
12
9390425320 Screw, tapping, 5x16 |
9390425320 |
from US $0.37 |
||
|
13
|
13
93913-24480 ScrewTAPPING, 4X16 (PO) |
93913-24480 |
from US $0.37 |
||
|
14
|
14
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
