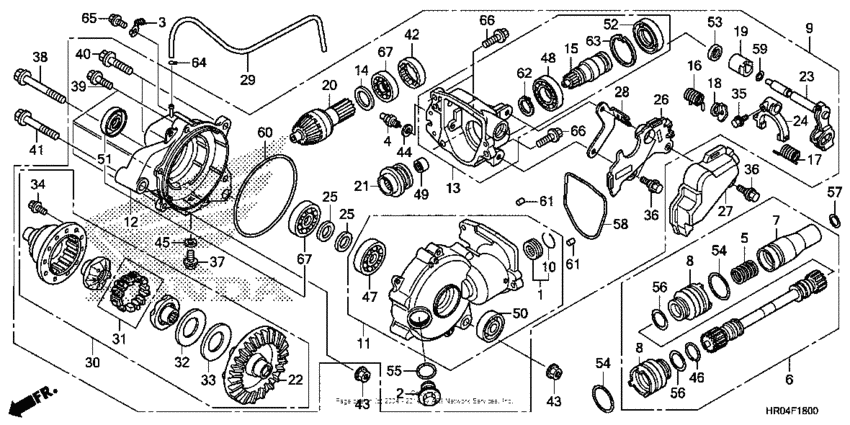

Front final gear Diagram Honda TRX 500 Foreman 500 ES
- Model code
- TRX500FE AC
- Engine Capacity
- 500
- Year
- 2013
- Sales region
- USA
- Frame
- 1HFTE387*D4100001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman 500 ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06910-HN8-000 Bearing set, needle |
06910-HN8-000 |
from US $18.32 |
||
|
2
|
2
12361-300-000 Cap, valve adj. |
12361-300-000 |
from US $13.04 |
||
|
3
|
3
32921-HN5-670 Clip |
32921-HN5-670 |
from US $4.40 |
||
|
4
|
4
35600-HN7-003 Switch, neutral |
35600-HN7-003 |
US $23.90 |
||
|
5
|
5
40215-HM7-000 Spring, shaft |
40215-HM7-000 |
US $2.86 |
||
|
6
|
6
40400-HR0-F00 Shaft, fr. propeller |
40400-HR0-F00 |
US $102.19 |
||
|
7
|
7
40402-HP5-600 Joint, fr. |
40402-HP5-600 |
US $41.70 |
||
|
8
|
8
40420-HP5-600 Boot |
40420-HP5-600 |
from US $7.98 |
||
|
9
|
9
41400-HR0-F00 Gear, fr. final |
41400-HR0-F00 |
US $1,164.12 |
||
|
10
|
10
41405-HA7-670 Ring, stopper |
41405-HA7-670 |
from US $2.22 |
||
|
11
|
11
41411-HR0-F00 Case sub-assy., fr. |
41411-HR0-F00 |
US $189.75 |
||
|
12
|
12
41412-HR0-F00 Cover sub-assy., fr. |
41412-HR0-F00 |
US $133.99 |
||
|
13
|
13
41413-HP5-601 Case sub-assy., fr. |
41413-HP5-601 |
US $220.05 |
||
|
14
|
14
41447-HM8-000 Shim a, pinion gear |
41447-HM8-000 |
from US $7.84 |
||
|
14
|
14
41448-HM8-000 Shim b, pinion gear |
41448-HM8-000 |
US $10.10 |
||
|
14
|
14
41449-HM8-000 Shim c, pinion gear |
41449-HM8-000 |
US $10.10 |
||
|
14
|
14
41451-HM8-000 Shim d, pinion gear |
41451-HM8-000 |
US $10.10 |
||
|
14
|
14
41452-HM8-000 Shim e, pinion gear |
41452-HM8-000 |
US $10.10 |
||
|
14
|
14
41453-HM8-000 Shim f, pinion gear |
41453-HM8-000 |
US $10.10 |
||
|
14
|
14
41454-HM8-000 Shim g, pinion gear |
41454-HM8-000 |
US $10.10 |
||
|
14
|
14
41455-HM8-000 Shim h, pinion gear |
41455-HM8-000 |
US $10.10 |
||
|
14
|
14
41456-HM8-000 Shim i, pinion gear |
41456-HM8-000 |
US $10.10 |
||
|
14
|
14
41457-HM8-000 Shim j, pinion gear |
41457-HM8-000 |
US $10.10 |
||
|
14
|
14
41458-HN0-670
Shim k (2.24)
|
41458-HN0-670 |
— | ||
|
14
|
14
41459-HN0-670
Shim l (2.30)
|
41459-HN0-670 |
— | ||
|
14
|
14
41461-HN0-670
Shim m (2.36)
|
41461-HN0-670 |
— | ||
|
14
|
14
41462-HN0-670
Shim n (2.42)
|
41462-HN0-670 |
— | ||
|
14
|
14
41463-HN0-670
Shim o (2.48)
|
41463-HN0-670 |
— | ||
|
15
|
15
41502-HL1-A01 Joint, fr. |
41502-HL1-A01 |
from US $75.34 |
||
|
16
|
16
41503-HP5-600 Spring, fr |
41503-HP5-600 |
US $4.35 |
||
|
17
|
17
41504-HP5-600 Spring, fr |
41504-HP5-600 |
US $8.64 |
||
|
18
|
18
41505-HP5-600 Stopper, fr. |
41505-HP5-600 |
US $1.92 |
||
|
19
|
19
41506-HP5-600 Collar, fr |
41506-HP5-600 |
from US $25.08 |
||
|
20
|
20
41521-HR0-F00 Gear, fr. (13t) |
41521-HR0-F00 |
from US $112.64 |
||
|
21
|
21
41527-HR0-F00 Sleeve, fr. |
41527-HR0-F00 |
US $47.67 |
||
|
22
|
22
41531-HR0-F00 Gear, fr. ring (42t) |
41531-HR0-F00 |
from US $106.30 |
||
|
23
|
23
41540-HP5-600 Shaft, fr |
41540-HP5-600 |
US $67.07 |
||
|
24
|
24
41550-HP5-600 Fork, fr. |
41550-HP5-600 |
from US $41.97 |
||
|
25
|
25
41631-HR0-F00 Shim a (0.50) |
41631-HR0-F00 |
US $2.57 |
||
|
25
|
25
41632-HR0-F00 Shim b (0.55) |
41632-HR0-F00 |
US $2.57 |
||
|
25
|
25
41633-HR0-F00 Shim c (0.60) |
41633-HR0-F00 |
US $2.57 |
||
|
25
|
25
41634-HR0-F00 Shim d (0.65) |
41634-HR0-F00 |
US $2.57 |
||
|
25
|
25
41635-HR0-F00 Shim e (0.70) |
41635-HR0-F00 |
US $2.57 |
||
|
25
|
25
41636-HR0-F00 Shim f (0.75) |
41636-HR0-F00 |
US $2.57 |
||
|
25
|
25
41637-HR0-F00 Shim g (0.80) |
41637-HR0-F00 |
US $2.45 |
||
|
25
|
25
41638-HR0-F00 Shim h (0.85) |
41638-HR0-F00 |
US $2.45 |
||
|
25
|
25
41639-HR0-F00 Shim i (0.90) |
41639-HR0-F00 |
US $2.45 |
||
|
25
|
25
41640-HR0-F00 Shim j (0.95) |
41640-HR0-F00 |
US $2.45 |
||
|
25
|
25
41641-HR0-F00 Shim k (1.00) |
41641-HR0-F00 |
US $2.57 |
||
|
25
|
25
41642-HR0-F00 Shim l (1.05) |
41642-HR0-F00 |
US $2.45 |
||
|
25
|
25
41643-HR0-F00 Shim m (1.10) |
41643-HR0-F00 |
US $2.45 |
||
|
25
|
25
41644-HR0-F00 Shim n (1.15) |
41644-HR0-F00 |
US $2.45 |
||
|
25
|
25
41645-HR0-F00 Shim o (1.20) |
41645-HR0-F00 |
US $2.45 |
||
|
25
|
25
41646-HR0-F00 Shim p (1.25) |
41646-HR0-F00 |
US $2.45 |
||
|
25
|
25
41647-HR0-F00 Shim q (1.30) |
41647-HR0-F00 |
US $2.57 |
||
|
25
|
25
41648-HR0-F00 Shim r (1.35) |
41648-HR0-F00 |
US $2.57 |
||
|
25
|
25
41649-HR0-F00 Shim s (1.40) |
41649-HR0-F00 |
US $2.57 |
||
|
25
|
25
41650-HR0-F00 Shim t (1.45) |
41650-HR0-F00 |
US $2.57 |
||
|
25
|
25
41651-HR0-F00 Shim u (1.50) |
41651-HR0-F00 |
US $2.57 |
||
|
25
|
25
41652-HR0-F00 Shim v (1.55) |
41652-HR0-F00 |
US $2.45 |
||
|
25
|
25
41653-HR0-F00 Shim w (1.60) |
41653-HR0-F00 |
US $2.57 |
||
|
26
|
26
41711-HP5-600 Case, clutch arm |
41711-HP5-600 |
US $10.54 |
||
|
27
|
27
41712-HP5-600 Cover, clutch arm |
41712-HP5-600 |
US $10 |
||
|
28
|
28
41715-HP5-600 Stay, clutch cable |
41715-HP5-600 |
from US $2.98 |
||
|
29
|
29
41811-HR0-F00 Tube (3.5x1225) |
41811-HR0-F00 |
US $9.11 |
||
|
30
|
30
42400-HR0-F01 Differential assy |
42400-HR0-F01 |
US $590.67 |
||
|
31
|
31
42440-HN5-671 Follower set, cam |
42440-HN5-671 |
US $61.54 |
||
|
32
|
32
42451-HN7-003 Shim a (1.3) |
42451-HN7-003 |
US $2.96 |
||
|
32
|
32
42452-HN7-003 Shim b (1.4) |
42452-HN7-003 |
US $2.96 |
||
|
32
|
32
42453-HN7-003 Shim c (1.5) |
42453-HN7-003 |
US $2.96 |
||
|
32
|
32
42454-HN7-003 Shim d (1.6) |
42454-HN7-003 |
from US $2.96 |
||
|
32
|
32
42455-HN7-003 Shim e (1.7) |
42455-HN7-003 |
from US $2.96 |
||
|
32
|
32
42456-HN7-003 Shim f (1.8) |
42456-HN7-003 |
US $2.96 |
||
|
32
|
32
42457-HN7-003 Shim g (1.9) |
42457-HN7-003 |
US $2.96 |
||
|
33
|
33
42461-HN5-671 Spring |
42461-HN5-671 |
from US $11.19 |
||
|
34
|
34
90101-HN8-000 Bolt (8x17) (14.9) |
90101-HN8-000 |
from US $1.23 |
||
|
35
|
35
90101-HP5-600 Bolt, special (6mm) |
90101-HP5-600 |
from US $3.85 |
||
|
36
|
36
90106-MM9-000 Bolt, fr. fender fixing |
90106-MM9-000 |
from US $2.29 |
||
|
37
|
37
90109-371-000 Bolt, sealing, 8mm |
90109-371-000 |
from US $3.63 |
||
|
38
|
38
90130-KPM-000 Bolt, flg (10x100) |
90130-KPM-000 |
from US $6.51 |
||
|
39
|
39
90133-HP5-600 Bolt, flange (8x27) |
90133-HP5-600 |
from US $2.52 |
||
|
40
|
40
90134-HP5-600 Bolt, flange (10x35) |
90134-HP5-600 |
from US $3.48 |
||
|
41
|
41
90182-MB2-003 Bolt, flange (10x66) |
90182-MB2-003 |
from US $5.18 |
||
|
42
|
42
90244-HA0-000 Nut, lock (60mm) |
90244-HA0-000 |
from US $23.10 |
||
|
43
|
43
90305-HC0-770 Nut, self-lock, 10mm |
90305-HC0-770 |
from US $2.66 |
||
|
44
|
44
90443-KR0-000 Washer, neutral switch |
90443-KR0-000 |
from US $1.48 |
||
|
45
|
45
90471-580-000 Packing8MM |
90471-580-000 |
from US $1.70 |
||
|
46
|
46
91012-KF0-000 Clip (12mm) |
91012-KF0-000 |
from US $2.44 |
||
|
47
|
47
91052-HR0-F01 Bearing, radial ball |
91052-HR0-F01 |
from US $19.02 |
||
|
48
|
48
91055-HP5-601 Bearing (32x58x13) |
91055-HP5-601 |
from US $13.80 |
||
|
49
|
49
91056-HP5-601 Bearing (12x18x12) |
91056-HP5-601 |
from US $5.71 |
||
|
50
|
50
91252-HC5-003 Oil seal (22x48x7) |
91252-HC5-003 |
from US $7.10 |
||
|
51
|
51
91252-HC5-003 Oil seal (22x48x7) |
91252-HC5-003 |
from US $7.10 |
||
|
52
|
52
91252-HP5-602 Oil seal (42x58x8) |
91252-HP5-602 |
from US $19.72 |
||
|
53
|
53
91254-KS7-831 Dust seal (22x28x5) |
91254-KS7-831 |
from US $6.81 |
||
|
54
|
54
91302-HM7-A00 Band, boot (d27) |
91302-HM7-A00 |
from US $6.35 |
||
|
55
|
55
91302-001-020 O-ring, 30.8mm |
91302-001-020 |
from US $3.63 |
||
|
56
|
56
91303-HM7-A00 Band, boot (d20) |
91303-HM7-A00 |
from US $6.35 |
||
|
57
|
57
91311-MB0-003 O-ring (18.5x2.4) |
91311-MB0-003 |
from US $2.52 |
||
|
58
|
58
91351-HP5-601 Gasket, fr. |
91351-HP5-601 |
from US $3.01 |
||
|
59
|
59
91352-GAZ-930 O-ring (8.5x1.5) |
91352-GAZ-930 |
from US $2.44 |
||
|
60
|
60
91352-HR0-F01 O-ring (132x2) |
91352-HR0-F01 |
US $4.34 |
||
|
61
|
61
94301-06100 Dowel pin6X10 |
94301-06100 |
from US $0.89 |
||
|
62
|
62
94510-32000 CirclipEXTERNAL, 32MM |
94510-32000 |
from US $0.81 |
||
|
63
|
63
94520-58000 CirclipINTERNAL, 58MM |
94520-58000 |
from US $0.85 |
||
|
64
|
64
9500235000 Clip, tube (c6.5) |
9500235000 |
from US $0.37 |
||
|
65
|
65
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
66
|
66
95701-080-250-0 BoltFLANGE, 8X25 |
95701-080-250-0 |
from US $0.74 |
||
|
67
|
67
96100-6006300 Bearing (6006) |
96100-6006300 |
from US $9.18 |
