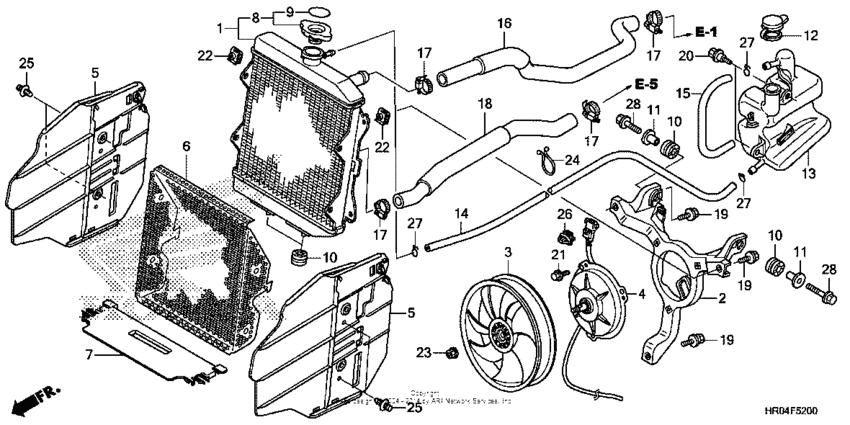

Radiator Diagram Honda TRX 500 Foreman 500 ES
- Model code
- TRX500FE AC
- Engine Capacity
- 500
- Year
- 2013
- Sales region
- USA
- Frame
- 1HFTE387*D4100001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman 500 ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19010-HP5-601 Radiator |
19010-HP5-601 |
US $313.12 |
||
|
2
|
2
19015-HP5-600 Stay, cooling fan |
19015-HP5-600 |
US $53.11 |
||
|
3
|
3
19020-HN2-003 Fan, cooling |
19020-HN2-003 |
from US $64.19 |
||
|
4
|
4
19030-HP5-601 Motor assy., fan |
19030-HP5-601 |
US $123.40 |
||
|
5
|
5
19033-HR0-F00 Cvr, radiator grille |
19033-HR0-F00 |
US $9.57 |
||
|
6
|
6
19034-HP5-600 Plate |
19034-HP5-600 |
US $34.75 |
||
|
7
|
7
19035-HP5-600 Cvr, radiator grille |
19035-HP5-600 |
US $36.07 |
||
|
8
|
8
19037-GEE-710 Cap, radiator |
19037-GEE-710 |
from US $22.43 |
||
|
9
|
9
19046-PAA-A00 LabelRADIATOR CAP |
19046-PAA-A00 |
from US $1.55 |
||
|
10
|
10
19051-KA3-830 Rubber, radiator mounting |
19051-KA3-830 |
from US $1.89 |
||
|
11
|
11
19052-MGH-640 Collar |
19052-MGH-640 |
from US $2.03 |
||
|
12
|
12
19104-MB0-700 Cap, reserve tank |
19104-MB0-700 |
from US $5.27 |
||
|
13
|
13
19110-HP5-600 Tk, radiator reserve |
19110-HP5-600 |
from US $101.77 |
||
|
14
|
14
19111-HP5-600 Tube |
19111-HP5-600 |
US $1.62 |
||
|
15
|
15
19112-HP5-600 Tube |
19112-HP5-600 |
US $4.74 |
||
|
16
|
16
19501-HR0-F00 Hose, water (upper) |
19501-HR0-F00 |
US $19.67 |
||
|
17
|
17
19503-HN2-A60 Band (27mm) |
19503-HN2-A60 |
US $6.89 |
||
|
18
|
18
19503-HR0-F00 Hose, water (lower) |
19503-HR0-F00 |
US $19.11 |
||
|
19
|
19
90107-HN8-003 Bolt-washer (6x15) |
90107-HN8-003 |
from US $2.46 |
||
|
20
|
20
90111-162-000 BoltFLANGE, 6MM |
90111-162-000 |
from US $3.55 |
||
|
21
|
21
90196-MBB-003 Bolt, flange (5mm) |
90196-MBB-003 |
from US $1.63 |
||
|
22
|
22
90201-KPR-901 Nut, clip (6mm) |
90201-KPR-901 |
from US $2.15 |
||
|
23
|
23
90315-MK3-003 Nut, serrate (5mm) |
90315-MK3-003 |
from US $2.15 |
||
|
24
|
24
90600-HN2-B70 Clip (37mm) |
90600-HN2-B70 |
from US $2.46 |
||
|
25
|
25
90653-HC4-900 Clip, mudguard |
90653-HC4-900 |
from US $1.80 |
||
|
26
|
26
91565-SEL-003 ClipCOUPLER(BLACK) |
91565-SEL-003 |
from US $1.70 |
||
|
27
|
27
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
28
|
28
95701-060-220-8 BoltFLANGE, 6X22 |
95701-060-220-8 |
from US $0.65 |
