Clutch Diagram Honda TRX 500 Foreman 500 ES EPS
- Model code
- TRX500FE2 2AC
- Engine Capacity
- 500
- Year
- 2014
- Sales region
- USA
- Frame
- 1HFTE44J*E4000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman 500 ES
Difficulties in parts search?
Difficulties in parts search?

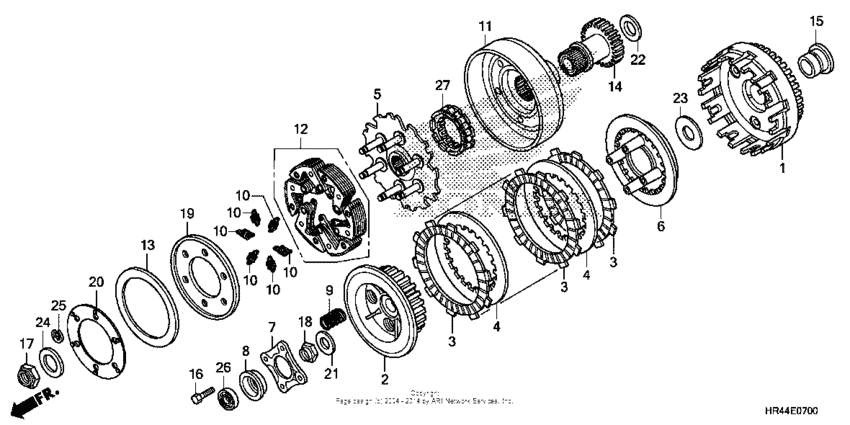

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-HP0-A00 Clutch (outer) |
22100-HP0-A00 |
from US $306.96 |
||
|
2
|
2
22121-HP0-A00 Center, clutch |
22121-HP0-A00 |
from US $58.09 |
||
|
3
|
3
22201-MCB-610 Disk, cl friction |
22201-MCB-610 |
from US $12.59 |
||
|
4
|
4
22321-HN0-670 Plate, clutch |
22321-HN0-670 |
from US $9.18 |
||
|
5
|
5
22350-HR0-F00 Plate, drive |
22350-HR0-F00 |
from US $95.76 |
||
|
6
|
6
22351-HP0-A00 Plate, clu press |
22351-HP0-A00 |
from US $17.85 |
||
|
7
|
7
22366-HN0-670 Plate, clutch lifter |
22366-HN0-670 |
from US $9.03 |
||
|
8
|
8
22367-HP5-600 Colr, clutch lifter |
22367-HP5-600 |
from US $5.25 |
||
|
9
|
9
22401-HR0-F00 Spring, clutch |
22401-HR0-F00 |
US $7.72 |
||
|
10
|
10
22451-HR0-F00 Spring, clutch |
22451-HR0-F00 |
US $4.42 |
||
|
11
|
11
22500-HR0-F00 Clutch outer |
22500-HR0-F00 |
from US $67.44 |
||
|
12
|
12
22535-HP0-305 Weight set, clutch |
22535-HP0-305 |
US $102.29 |
||
|
13
|
13
22714-HR0-F00 Spring, cone disk |
22714-HR0-F00 |
US $10.34 |
||
|
14
|
14
23120-HP0-A00 Gear, drive |
23120-HP0-A00 |
from US $105.60 |
||
|
15
|
15
23213-HP0-A00 Bush (22mm) |
23213-HP0-A00 |
from US $14.50 |
||
|
16
|
16
90002-HR0-E00 Bolt, hex. (6x32) |
90002-HR0-E00 |
from US $1.40 |
||
|
17
|
17
90235-HM7-000 Nut, lock (20mm) |
90235-HM7-000 |
from US $4.74 |
||
|
18
|
18
90236-HN5-M00 Nut, lock (18mm) |
90236-HN5-M00 |
from US $7.10 |
||
|
19
|
19
90406-HN2-A00 Washer (66x124x1.0) |
90406-HN2-A00 |
US $14.77 |
||
|
20
|
20
90407-HN2-A00 Washer (66x107x1.6) |
90407-HN2-A00 |
US $14.54 |
||
|
21
|
21
90432-HP0-A00 Washer (18mm) |
90432-HP0-A00 |
US $4.51 |
||
|
22
|
22
90457-HN2-000 Washer (29x40x2) |
90457-HN2-000 |
US $7.51 |
||
|
23
|
23
90458-HN0-670 Washer (22x45x0.8) |
90458-HN0-670 |
US $4.42 |
||
|
24
|
24
90459-KB4-670 Washer, thrust, 20mm |
90459-KB4-670 |
from US $5.03 |
||
|
25
|
25
90605-HM8-000 Circlip (7mm) |
90605-HM8-000 |
from US $1.78 |
||
|
26
|
26
96100-600-300-0 Bearing, radial ball, 6003 |
96100-600-300-0 |
from US $6.43 |
||
|
27
|
27
91101-HA0-004 Clutch, one-way |
91101-HA0-004 |
from US $76.16 |
