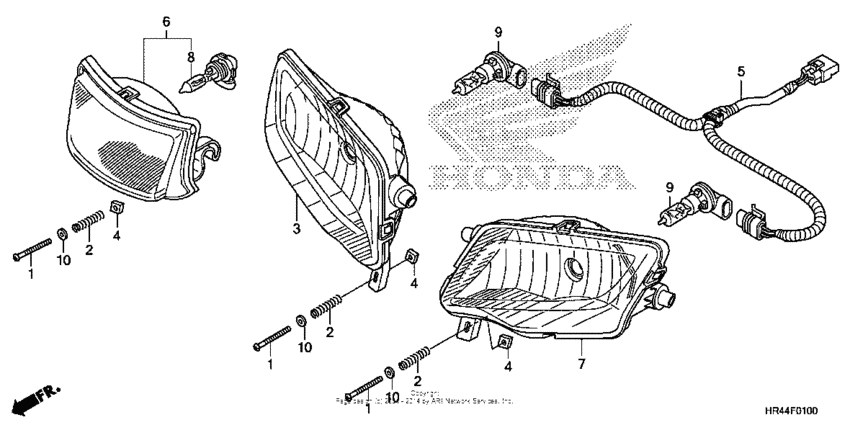

Headlight Diagram Honda TRX 500 Foreman 500 ES EPS
- Model code
- TRX500FE2 2AC
- Engine Capacity
- 500
- Year
- 2014
- Sales region
- USA
- Frame
- 1HFTE44J*E4000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman 500 ES
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33103-KAE-770 Screw, pan |
33103-KAE-770 |
from US $1.18 |
||
|
2
|
2
33107-KAE-771 Spring |
33107-KAE-771 |
from US $1.92 |
||
|
3
|
3
33110-HR3-A20 Headlight unit, r. |
33110-HR3-A20 |
from US $50.69 |
||
|
4
|
4
33117-KBR-730 Nut, beam adjusting |
33117-KBR-730 |
from US $3.55 |
||
|
5
|
5
33130-HR3-A20 Sub-harness |
33130-HR3-A20 |
US $23 |
||
|
6
|
6
33150-HP0-A00
Headlight, assist
|
33150-HP0-A00 |
— | ||
|
7
|
7
33160-HR3-A20 Headlight unit, l. |
33160-HR3-A20 |
from US $53.06 |
||
|
8
|
8
34901-HN2-000
Bulb (12v45w)
|
34901-HN2-000 |
— | ||
|
9
|
9
34901-HR3-A21 Bulb (12v 35/35w) |
34901-HR3-A21 |
US $25.99 |
||
|
10
|
10
9410304000 Washer, plain, 4mm |
9410304000 |
from US $0.37 |
