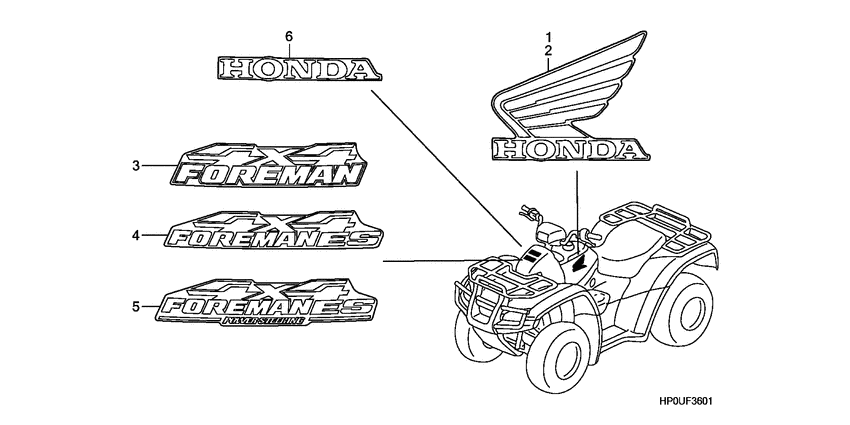

Mark (2) Diagram Honda TRX 500 Foreman 500 ES
- Model code
- TRX500FE9
- Engine Capacity
- 500
- Year
- 2009
- Sales region
- Australia
- Frame
- 1HFTE31U*94460001 - 1HFTE31U*94999999
- Engine
- TE31E8400001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman 500 ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87121-HN2-B40ZA Emblem, r. (type1) |
87121-HN2-B40ZA |
US $102.80 |
||
|
1
|
1
87121-HP0-A20ZA Emblem, r. (type1) |
87121-HP0-A20ZA |
from US $21.13 |
||
|
1
|
1
87121-HP0-A20ZB Emblem, r. (type2) |
87121-HP0-A20ZB |
from US $21.13 |
||
|
2
|
2
87122-HP0-A20ZA Emblem, l. (type1) |
87122-HP0-A20ZA |
from US $21.13 |
||
|
2
|
2
87122-HP0-A20ZB Emblem, l. (type2) |
87122-HP0-A20ZB |
from US $21.13 |
||
|
2
|
2
87122-HP0-H00ZA Emblem, l. (type1) |
87122-HP0-H00ZA |
US $38.88 |
||
|
4
|
4
87124-HP0-H10ZA Mark, fr. (type1) |
87124-HP0-H10ZA |
US $64.87 |
||
|
4
|
4
87124-HP0-H10ZB Mark, fr. (type2) |
87124-HP0-H10ZB |
US $7.62 |
||
|
4
|
4
87124-HP0-H10ZC Mark, fr. (type3) |
87124-HP0-H10ZC |
US $7.74 |
||
|
6
|
6
87127-HN2-B40ZA Mark, honda (type1) |
87127-HN2-B40ZA |
US $53.69 |
||
|
6
|
6
87127-HN7-A00ZA Mark, honda (type1) |
87127-HN7-A00ZA |
US $22.70 |
||
|
6
|
6
87127-HN7-A00ZB Mark, honda (type3) |
87127-HN7-A00ZB |
US $22.90 |
