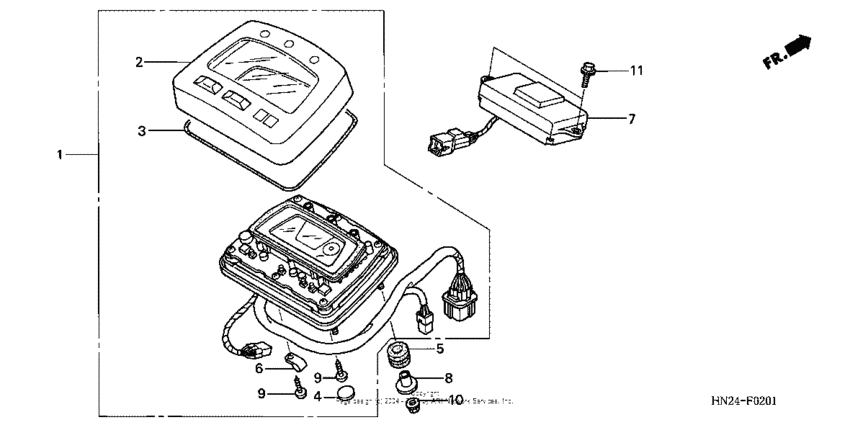

Meter (trx500fga'04) Diagram Honda TRX 500 Foreman Rubicon 500 GPScape
- Model code
- TRX500FGA A
- Engine Capacity
- 500
- Year
- 2004
- Sales region
- USA
- Frame
- 478TE264*44300001 - 478TE264*44399999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman Rubicon 500 GPScape
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37200-HN2-A11
Meter assy
|
37200-HN2-A11 |
— | ||
|
2
|
2
37201-HN2-A11 Case assy. (upper) |
37201-HN2-A11 |
US $56.11 |
||
|
3
|
3
37211-HN0-A01 Gasket |
37211-HN0-A01 |
from US $4.24 |
||
|
4
|
4
37212-HN0-A01 Cap |
37212-HN0-A01 |
from US $2.24 |
||
|
5
|
5
37215-HM5-670 Rubber, mounting |
37215-HM5-670 |
US $2.86 |
||
|
6
|
6
37215-KS3-901 Clamp |
37215-KS3-901 |
from US $2 |
||
|
7
|
7
37500-HN7-731 Unit, gps receiver |
37500-HN7-731 |
US $305.85 |
||
|
8
|
8
83601-357-000 Colr, cover setting |
83601-357-000 |
from US $4.44 |
||
|
9
|
9
93903-24420 ScrewTAPPING, 4X16 |
93903-24420 |
from US $0.37 |
||
|
10
|
10
94050-06070 Nut |
94050-06070 |
from US $0.52 |
||
|
11
|
11
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
