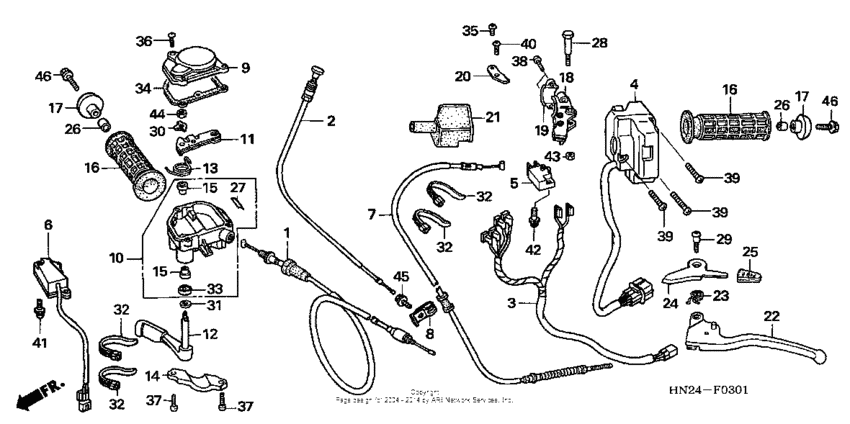

Handle levers + switches + cables (trx500fa/fga'05) Diagram Honda TRX 500 Foreman Rubicon 500 GPScape
- Model code
- TRX500FGA A
- Engine Capacity
- 500
- Year
- 2005
- Sales region
- USA
- Frame
- 1HFTE264*54400001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman Rubicon 500 GPScape
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-HP0-A00 Cable, throttle |
17910-HP0-A00 |
from US $41.13 |
||
|
2
|
2
17950-HP0-A00 Cable, choke |
17950-HP0-A00 |
US $11.07 |
||
|
3
|
3
32105-HN2-A20 Sub-wire, fr. |
32105-HN2-A20 |
US $31.52 |
||
|
4
|
4
35200-HP0-A10 Switch, l. handle |
35200-HP0-A10 |
US $117.15 |
||
|
5
|
5
35340-HR0-305 Switch, fr. stop |
35340-HR0-305 |
US $22.98 |
||
|
5
|
5
35340-ML4-005 Switch assy., fr. stop (tateishi) |
35340-ML4-005 |
from US $13.91 |
||
| replacement | |||||
|
5
|
5
35340-HR0-305 Switch, fr. stop |
35340-HR0-305 |
US $22.98 |
||
|
6
|
6
35400-HP0-A00 Switch (2wd/4wd) |
35400-HP0-A00 |
US $50.51 |
||
|
7
|
7
43460-HP0-A00 Cable, hand brake |
43460-HP0-A00 |
US $21.27 |
||
|
8
|
8
50352-HN2-000 Clamp, brake cable |
50352-HN2-000 |
US $1.41 |
||
|
9
|
9
53141-HP1-000 Cover, throttle case |
53141-HP1-000 |
from US $26.89 |
||
|
10
|
10
53143-HN0-305 Case, throttle lever |
53143-HN0-305 |
from US $39.58 |
||
|
11
|
11
53144-HA0-010 Arm, throttle |
53144-HA0-010 |
from US $6.81 |
||
|
12
|
12
53145-HA0-305 Lever, throttle |
53145-HA0-305 |
US $24.31 |
||
| replacement | |||||
|
12
|
12
53145-HA0-770 Lever, throttle |
53145-HA0-770 |
from US $23.66 |
||
|
13
|
13
53146-HM8-000 Spring |
53146-HM8-000 |
from US $2.23 |
||
|
14
|
14
53147-HN0-670 Holder |
53147-HN0-670 |
from US $5.71 |
||
|
15
|
15
53148-HA0-000 Bush, throttle pivot |
53148-HA0-000 |
from US $5.33 |
||
|
16
|
16
53165-958-010 Grip, handle |
53165-958-010 |
from US $16.32 |
||
|
17
|
17
53167-958-680 Guard, handlebar end |
53167-958-680 |
from US $2.95 |
||
|
18
|
18
53172-HN8-000 Bracket, brake lever |
53172-HN8-000 |
from US $29.71 |
||
|
19
|
19
53173-376-000 Holder |
53173-376-000 |
from US $13.35 |
||
|
20
|
20
53174-HN8-000 Stay |
53174-HN8-000 |
US $7.84 |
||
|
21
|
21
53177-HN8-000 Cvr, l. handle lever |
53177-HN8-000 |
US $5.49 |
||
|
22
|
22
53178-HN8-010 BRAKE LEVER |
53178-HN8-010 |
from US $22.68 |
||
|
23
|
23
53191-HN8-000 Spring |
53191-HN8-000 |
US $3.72 |
||
|
24
|
24
53192-HN8-000 Lever |
53192-HN8-000 |
from US $8.93 |
||
|
25
|
25
53193-HA0-770 Cap, parking lever |
53193-HA0-770 |
from US $2.95 |
||
|
26
|
26
84906-118-000 Collar, number bracket setting |
84906-118-000 |
from US $2.37 |
||
|
27
|
27
87516-HN0-670 Mark (2wd/4wd) |
87516-HN0-670 |
US $17.90 |
||
|
28
|
28
90113-HA0-770 Bolt |
90113-HA0-770 |
from US $2.44 |
||
|
29
|
29
90115-HA6-000 Screw |
90115-HA6-000 |
from US $1.87 |
||
|
30
|
30
90501-HA0-000 Washer, lock, 6mm |
90501-HA0-000 |
from US $2.56 |
||
|
31
|
31
90504-HA0-000 Washer (9x20) |
90504-HA0-000 |
from US $2.10 |
||
|
32
|
32
90651-MA6-720 BandHARNESS |
90651-MA6-720 |
from US $3.26 |
||
|
33
|
33
91210-HA0-004 Dust seal (9x16x5) |
91210-HA0-004 |
from US $3.80 |
||
|
34
|
34
91532-HA0-020 Gasket |
91532-HA0-020 |
from US $1.67 |
||
|
35
|
35
93500-040-080-G ScrewPAN, 4X8 |
93500-040-080-G |
from US $0.37 |
||
|
36
|
36
93500-040-160-G ScrewPAN, 4X16 |
93500-040-160-G |
from US $0.37 |
||
|
37
|
37
93500-050140G Screw, pan (5x14) |
93500-050140G |
from US $0.37 |
||
|
38
|
38
93500-050180G Screw, pan, 5x18 |
93500-050180G |
from US $0.38 |
||
|
39
|
39
93500-050280G Screw, pan, 5x28 |
93500-050280G |
from US $0.44 |
||
|
40
|
40
93500-060160G Screw, pan (6x16) |
93500-060160G |
from US $0.49 |
||
|
41
|
41
93891-040-120-7 Screw-washer4X12 |
93891-040-120-7 |
from US $0.44 |
||
|
42
|
42
93893-040-160-7 Screw-washer4X16 |
93893-040-160-7 |
from US $0.52 |
||
|
43
|
43
94001-060-700-S NutHEX., 6MM |
94001-060-700-S |
from US $0.44 |
||
|
44
|
44
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
45
|
45
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
46
|
46
95701-060-250-7 BoltFLANGE, 6X25 |
95701-060-250-7 |
from US $0.59 |
||
