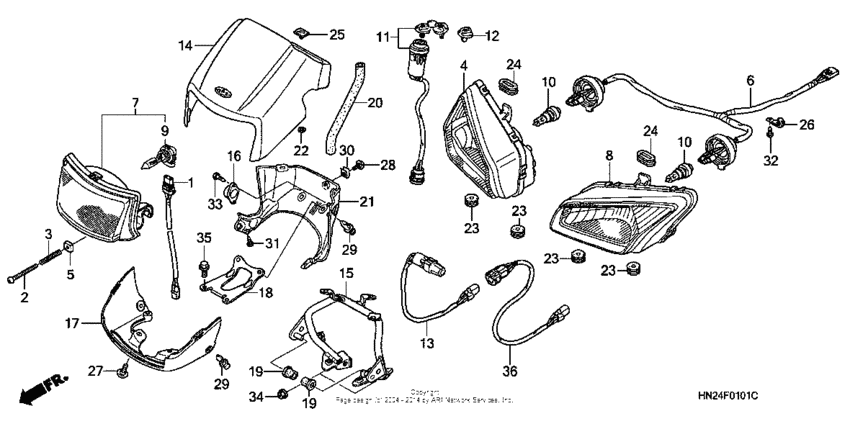

Headlight (trx500fa/fga'05) Diagram Honda TRX 500 Foreman Rubicon 500 GPScape
- Model code
- TRX500FGA A
- Engine Capacity
- 500
- Year
- 2005
- Sales region
- USA
- Frame
- 1HFTE264*54400001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman Rubicon 500 GPScape
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32500-HP0-A00 Sub-wire, headlight |
32500-HP0-A00 |
US $9.64 |
||
|
2
|
2
33103-KAE-770 Screw, pan |
33103-KAE-770 |
from US $1.18 |
||
|
3
|
3
33107-KAE-771 Spring |
33107-KAE-771 |
from US $1.92 |
||
|
4
|
4
33110-HP0-A00 Headlight unit, r. |
33110-HP0-A00 |
US $134.62 |
||
|
5
|
5
33117-KBR-730 Nut, beam adjusting |
33117-KBR-730 |
from US $3.55 |
||
|
6
|
6
33130-HP0-A00 Socket, headlight |
33130-HP0-A00 |
US $112.66 |
||
|
7
|
7
33150-HP0-A00
Headlight, assist
|
33150-HP0-A00 |
— | ||
|
8
|
8
33160-HP0-A00 Headlight unit, l. |
33160-HP0-A00 |
US $134.62 |
||
|
9
|
9
34901-HN2-000
Bulb (12v45w)
|
34901-HN2-000 |
— | ||
|
10
|
10
34901-HP0-A01 Bulb, headlight |
34901-HP0-A01 |
US $42.79 |
||
|
11
|
11
35100-HP0-A00 Switch, ignition |
35100-HP0-A00 |
US $62.39 |
||
|
12
|
12
35121-HF1-881 Key, blank (type1)(Optional). |
35121-HF1-881 |
from US $6.07 |
||
|
12
|
12
35122-HF1-881 Key, blank (type2)(Optional). |
35122-HF1-881 |
from US $8.58 |
||
|
13
|
13
35300-HN2-A21 Switch, mode selectUse up to Frame SN 54400081 |
35300-HN2-A21 |
US $83.64 |
||
|
13
|
13
35300-HN2-A22 Switch, mode selectUse from Frame SN 54400082 |
35300-HN2-A22 |
US $121.21 |
||
|
14
|
14
53205-HN2-A30ZA Cover, meter *g152* |
53205-HN2-A30ZA |
US $19.28 |
||
|
14
|
14
53205-HN2-A30ZB Cover, meter *r232* |
53205-HN2-A30ZB |
US $19.28 |
||
|
14
|
14
53205-HN2-A30ZC Cover, meter *y151r* |
53205-HN2-A30ZC |
US $18.45 |
||
|
15
|
15
53207-HP0-A00 Stay, meter cover |
53207-HP0-A00 |
US $162.42 |
||
|
16
|
16
53209-HN2-A20 Holder |
53209-HN2-A20 |
US $9.86 |
||
|
17
|
17
53210-HP0-A00ZA Cvr, fr. meter *nh1* |
53210-HP0-A00ZA |
US $15.54 |
||
|
18
|
18
53211-HN2-A20 Stay, meter coverUse from Frame SN 54400082 |
53211-HN2-A20 |
US $3.83 |
||
|
18
|
18
53211-HP0-A00 Stay, meter coverUse up to Frame SN 54400081 |
53211-HP0-A00 |
US $46.17 |
||
|
19
|
19
53212-HP0-A00 Boot |
53212-HP0-A00 |
from US $1.60 |
||
|
20
|
20
53213-HP0-A00 Guide, tube |
53213-HP0-A00 |
US $6.24 |
||
|
21
|
21
53215-HN2-A20ZA Cvr, rr. meter *nh1* |
53215-HN2-A20ZA |
US $13.36 |
||
|
22
|
22
64206-MJ0-000 Nut, speed (4mm) |
64206-MJ0-000 |
from US $2.15 |
||
|
23
|
23
80219-HC4-000 Rubber, taillight mounting |
80219-HC4-000 |
from US $2.72 |
||
|
24
|
24
83601-MB0-000 Grommet a, side cover |
83601-MB0-000 |
from US $2.95 |
||
|
25
|
25
86150-HN8-004 Emblem, product |
86150-HN8-004 |
from US $7.99 |
||
|
26
|
26
90010-GE0-710 Clip, tube |
90010-GE0-710 |
from US $2.59 |
||
|
27
|
27
90106-KBV-000 Screw, pan (6x14) |
90106-KBV-000 |
from US $2 |
||
|
28
|
28
90115-KW7-900 Screw, visor special setting |
90115-KW7-900 |
from US $1.28 |
||
|
29
|
29
90653-HC4-900 Clip, mudguard |
90653-HC4-900 |
from US $1.80 |
||
|
30
|
30
90677-KAN-961 Nut, clip (5mm) |
90677-KAN-961 |
from US $2.16 |
||
|
31
|
31
93903-25180 ScrewTAPPING, 5X10 |
93903-25180 |
from US $0.37 |
||
|
32
|
32
93903-25220 ScrewTAPPING, 5X12 |
93903-25220 |
from US $0.38 |
||
|
33
|
33
93904-25220 ScrewTAPPING, 5X12 |
93904-25220 |
from US $0.37 |
||
|
34
|
34
94050-08070 NutFLANGE, 8MM |
94050-08070 |
from US $0.52 |
||
|
35
|
35
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
36
|
36
32150-HN2-A20 Sub-harnessUse from Frame SN 54400082 |
32150-HN2-A20 |
US $12.58 |
