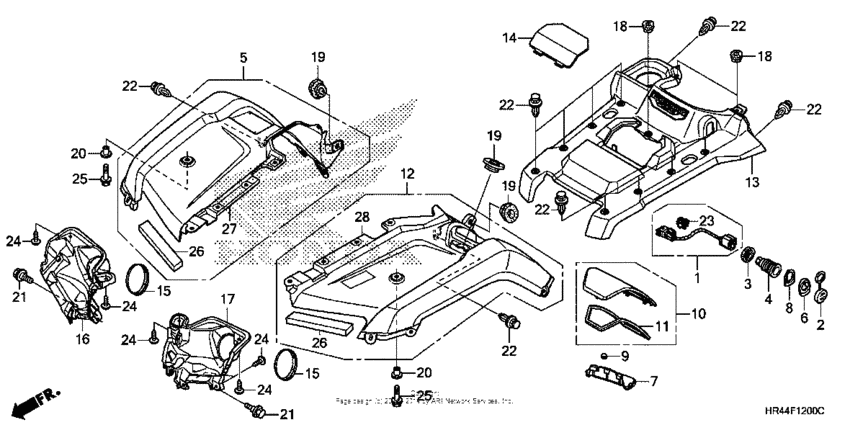

Front fender Diagram Honda TRX 500 Foreman 500
- Model code
- TRX500FM1 AC
- Engine Capacity
- 500
- Year
- 2014
- Sales region
- USA
- Frame
- 1HFTE440*E4000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman Rubicon 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31651-HR4-A20 Sub-harness, acsry |
31651-HR4-A20 |
US $7.72 |
||
|
2
|
2
31652-HP0-A01 Cap |
31652-HP0-A01 |
US $3.40 |
||
|
3
|
3
31653-HP0-A01 Nut |
31653-HP0-A01 |
from US $1.92 |
||
|
4
|
4
31655-HP0-A01 Socket, accessory |
31655-HP0-A01 |
US $29.89 |
||
|
5
|
5
61100-HR4-A20ZA Fdr, r. fr. *r232*Patriot red R232; |
61100-HR4-A20ZA |
US $116.98 |
||
|
5
|
5
61100-HR4-A20ZB Fdr, r. fr. *pb357r*Eastern blue PB357R; |
61100-HR4-A20ZB |
US $116.98 |
||
|
5
|
5
61100-HR4-A20ZC Fdr, r. fr. *g152*Adventure green G152; |
61100-HR4-A20ZC |
US $116.99 |
||
|
6
|
6
61103-HN5-670ZB Spacer (outer) *nh1* |
61103-HN5-670ZB |
US $2.98 |
||
|
7
|
7
61103-HR0-F00ZA Plug *nh1* |
61103-HR0-F00ZA |
US $6.90 |
||
|
8
|
8
61104-HN5-670ZA Spacer (inner) *nh1* |
61104-HN5-670ZA |
US $3.52 |
||
|
9
|
9
61105-KA8-000 Plug, fr. fender |
61105-KA8-000 |
from US $2 |
||
|
10
|
10
61110-HR4-A20ZA Lid assy. *r232*Patriot red R232; |
61110-HR4-A20ZA |
US $22.12 |
||
|
10
|
10
61110-HR4-A20ZB Lid assy. *pb357r*Eastern blue PB357R; |
61110-HR4-A20ZB |
US $22.12 |
||
|
10
|
10
61110-HR4-A20ZC Lid assy. *g152*Adventure green G152; |
61110-HR4-A20ZC |
US $22.12 |
||
|
11
|
11
61122-HR4-A20 Seal, glove box |
61122-HR4-A20 |
US $6.02 |
||
|
12
|
12
61200-HR4-A20ZA Fdr, l. fr. *r232*Patriot red R232; |
61200-HR4-A20ZA |
US $101.76 |
||
|
12
|
12
61200-HR4-A20ZB Fdr, l. fr. *pb357r*Eastern blue PB357R; |
61200-HR4-A20ZB |
US $101.78 |
||
|
12
|
12
61200-HR4-A20ZC Fdr, l. fr. *g152*Adventure green G152; |
61200-HR4-A20ZC |
US $101.78 |
||
|
13
|
13
61305-HR4-A20ZA Cover set, fr. *nh1* |
61305-HR4-A20ZA |
US $95.40 |
||
|
14
|
14
61310-HR3-A20ZA Lid *nh1* |
61310-HR3-A20ZA |
US $10.49 |
||
|
15
|
15
64365-040-000ZH Cap, fr. cover *nh1* |
64365-040-000ZH |
from US $3.85 |
||
|
16
|
16
66301-HR3-A20 Cover, r. headlight |
66301-HR3-A20 |
from US $5.27 |
||
|
17
|
17
66302-HR3-A20 Cover, l. headlight |
66302-HR3-A20 |
from US $5.27 |
||
|
18
|
18
83501-MG7-000 Grommet, side cover |
83501-MG7-000 |
from US $2.37 |
||
|
19
|
19
83551-MA6-000 Grommet, side cover |
83551-MA6-000 |
from US $3.63 |
||
|
20
|
20
84706-GB0-900 Collar |
84706-GB0-900 |
from US $3.48 |
||
|
21
|
21
90111-162-000 BoltFLANGE, 6MM |
90111-162-000 |
from US $3.55 |
||
|
22
|
22
90653-HC4-900 Clip, mudguard |
90653-HC4-900 |
from US $1.80 |
||
|
23
|
23
91535-TA0-003 ClipCOUPLER (DARK BROWN) |
91535-TA0-003 |
from US $3.48 |
||
|
24
|
24
93903-25220 ScrewTAPPING, 5X12 |
93903-25220 |
from US $0.38 |
||
|
25
|
25
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
26
|
26
61107-HR4-A20 Seal, fr. fender |
61107-HR4-A20 |
US $8.14 |
