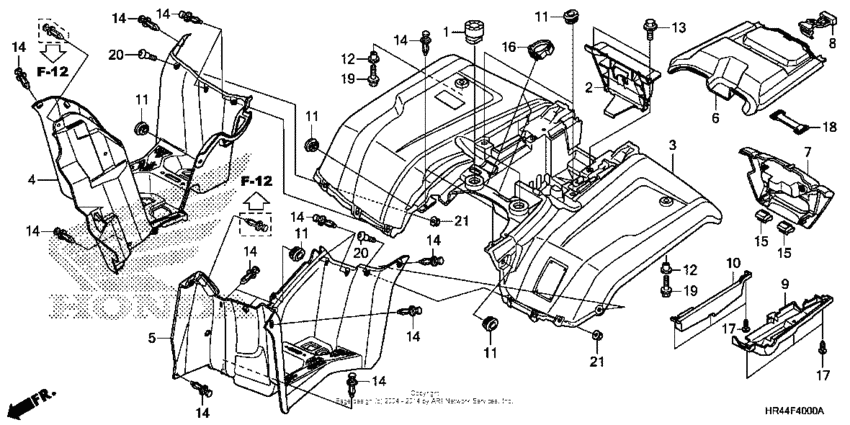

Rear fender Diagram Honda TRX 500 Foreman 500 EPS
- Model code
- TRX500FM2 AC
- Engine Capacity
- 500
- Year
- 2014
- Sales region
- USA
- Frame
- 1HFTE44D*E4000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman Rubicon 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77207-HA0-000 Rubber, seat setting |
77207-HA0-000 |
from US $4.74 |
||
|
2
|
2
80101-HR3-A20 Holder, battery |
80101-HR3-A20 |
US $9.47 |
||
|
3
|
3
80110-HR4-A20ZA Fdr, rr. *r232*Patriot red R232; |
80110-HR4-A20ZA |
US $112.03 |
||
|
3
|
3
80110-HR4-A20ZB Fdr, rr. *pb357r*Eastern blue PB357R; |
80110-HR4-A20ZB |
US $148.24 |
||
| replacement | |||||
|
3
|
3
80110-HR4-L21ZH Fender, Rr.Eastern blue PB357R; |
80110-HR4-L21ZH |
US $178.98 |
||
|
3
|
3
80110-HR4-A20ZC Fdr, rr. *g152*Adventure green G152; |
80110-HR4-A20ZC |
US $112.03 |
||
| replacement | |||||
|
3
|
3
80110-HR4-L21ZF FENDER, REAR, *G152* (ADVENTURE GREEN)Adventure green G152; |
80110-HR4-L21ZF |
US $135.29 |
||
|
4
|
4
80121-HR3-A20ZA Sph guard, r. *nh1* |
80121-HR3-A20ZA |
from US $98.52 |
||
|
5
|
5
80122-HR3-A20ZA Sph guard, l. *nh1* |
80122-HR3-A20ZA |
from US $59.26 |
||
|
6
|
6
80210-HR3-A20ZA Cover, rr. *nh1* |
80210-HR3-A20ZA |
from US $71.40 |
||
|
7
|
7
80211-HR3-A20ZA Lid, tool box *nh1* |
80211-HR3-A20ZA |
US $7.62 |
||
|
8
|
8
80214-HM5-850 Band, tool box |
80214-HM5-850 |
from US $3.37 |
||
|
9
|
9
80222-HR3-A20 Protr, rr. muffler |
80222-HR3-A20 |
US $10.71 |
||
|
10
|
10
80223-HR3-A20 Protector, battery |
80223-HR3-A20 |
US $12.43 |
||
|
11
|
11
83551-MA6-000 Grommet, side cover |
83551-MA6-000 |
from US $3.63 |
||
|
12
|
12
84706-GB0-900 Collar |
84706-GB0-900 |
from US $3.48 |
||
|
13
|
13
90111-147-000 Bolt, flange, 6mm |
90111-147-000 |
from US $3.18 |
||
|
14
|
14
90653-HC4-900 Clip, mudguard |
90653-HC4-900 |
from US $1.80 |
||
|
15
|
15
90660-SB2-000 ClipCORD |
90660-SB2-000 |
from US $3.33 |
||
|
16
|
16
91556-SK7-003 ClipWIRE HARNESS(BLACK) |
91556-SK7-003 |
from US $1.68 |
||
|
17
|
17
93903-25220 ScrewTAPPING, 5X12 |
93903-25220 |
from US $0.38 |
||
|
18
|
18
95012-13001 Band b2, battery |
95012-13001 |
from US $3.03 |
||
|
19
|
19
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
20
|
20
90102-HN5-670 Screw, special (6x8) |
90102-HN5-670 |
from US $1.48 |
||
|
21
|
21
90302-187-000 Nut, flange (6mm) |
90302-187-000 |
from US $2.37 |
||
