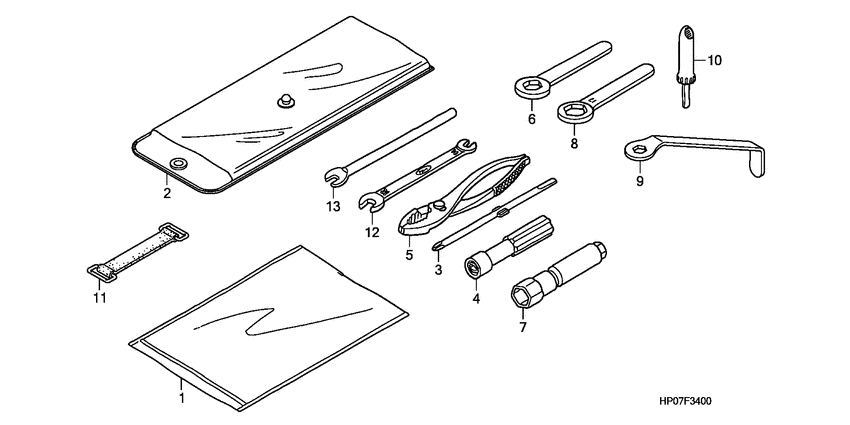

Tools Diagram Honda TRX 500 Foreman 500
- Model code
- TRX500FMA
- Engine Capacity
- 500
- Year
- 2010
- Sales region
- Australia
- Frame
- 1HFTE31U*A4500001 - 1HFTE31U*A4999999
- Engine
- TE31E8500001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman Rubicon 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83642-HM5-A10 Bag, owner`s manual |
83642-HM5-A10 |
US $1.97 |
||
|
2
|
2
89101-198-000 Bag, tool (170) |
89101-198-000 |
from US $5.62 |
||
| replacement | |||||
|
2
|
2
89101-965-003
Bag, tool (170)
|
89101-965-003 |
— | ||
|
3
|
3
89102-538-000 Driver, SCREW(NO.2 + -) |
89102-538-000 |
from US $2.37 |
||
|
4
|
4
89103-538-000 Grip |
89103-538-000 |
US $6.78 |
||
|
5
|
5
89210-GBJ-J00 Pliers, 135 (riken) |
89210-GBJ-J00 |
from US $9.32 |
||
|
5
|
5
89210-GBJ-J10 Pliers, 135 (kowa) |
89210-GBJ-J10 |
from US $8.88 |
||
|
5
|
5
99002-13500
Pliers
|
99002-13500 |
— | ||
| replacement | |||||
|
5
|
5
89210-GBJ-J10 Pliers, 135 (kowa) |
89210-GBJ-J10 |
from US $8.88 |
||
|
6
|
6
89211-HE0-670 Wrench, eye (14mm) |
89211-HE0-670 |
US $9.88 |
||
|
7
|
7
89216-HP0-A00 Wrench, plug (16) |
89216-HP0-A00 |
US $11.14 |
||
|
8
|
8
89218-MF5-000 Wrench, eye (17mm) |
89218-MF5-000 |
from US $12.88 |
||
| replacement | |||||
|
8
|
8
89218-MN8-000 Wrench, eye (17) |
89218-MN8-000 |
US $21.69 |
||
|
10
|
10
89301-HA0-771 Gauge, tire pressure |
89301-HA0-771 |
from US $35.63 |
||
|
11
|
11
95012-11001 Band a, battery |
95012-11001 |
from US $1.55 |
||
|
12
|
12
99001-10120 Spanner |
99001-10120 |
from US $3.55 |
||
|
13
|
13
9900502000 Bar b, handle |
9900502000 |
from US $2.96 |
||
