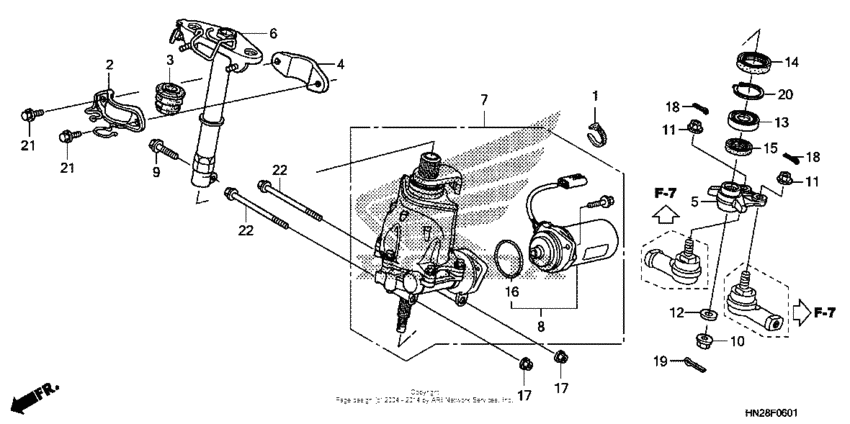

Steering shaft (power steering) (trx500fpa) Diagram Honda TRX 500 Rubicon 500
- Model code
- TRX500FPA 2A
- Engine Capacity
- 500
- Year
- 2011
- Sales region
- USA
- Frame
- 1HFTE26F*B4100001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman Rubicon 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32161-404-610 Band b1, wire |
32161-404-610 |
from US $3.18 |
||
|
2
|
2
53220-HP0-A00 Holder |
53220-HP0-A00 |
US $21.98 |
||
|
3
|
3
53221-HP0-B01 Bush, steering |
53221-HP0-B01 |
from US $17.27 |
||
|
4
|
4
53223-HP0-A00 Holder |
53223-HP0-A00 |
US $28.73 |
||
|
5
|
5
53235-HP0-B00 Arm, steering |
53235-HP0-B00 |
US $31.33 |
||
|
6
|
6
53310-HP0-B00 Shaft, steering |
53310-HP0-B00 |
US $571.56 |
||
|
7
|
7
53600-HN2-B70 Power steering unit |
53600-HN2-B70 |
from US $1,339.02 |
||
|
8
|
8
53615-HP0-B00 Set, eps motor |
53615-HP0-B00 |
US $254.49 |
||
|
9
|
9
90102-GEZ-000 Bolt, flange (10x35) |
90102-GEZ-000 |
from US $1.78 |
||
|
10
|
10
90213-S73-003 Nut (14mm) |
90213-S73-003 |
from US $3.22 |
||
|
11
|
11
90305-HC4-000 Nut, self-lock, 12mm |
90305-HC4-000 |
from US $2.96 |
||
|
12
|
12
90402-HA0-000 Washer, thrust, 14mm |
90402-HA0-000 |
from US $2.57 |
||
|
13
|
13
91051-HP0-B01 Bearing |
91051-HP0-B01 |
from US $29.15 |
||
|
14
|
14
91251-HP0-B02 Dust seal (38x54x7) |
91251-HP0-B02 |
from US $9.74 |
||
|
15
|
15
91252-HP0-B01 Dust seal (27x40x5) |
91252-HP0-B01 |
from US $6.48 |
||
|
16
|
16
91351-S3Y-003 O-ringMOTOR |
91351-S3Y-003 |
from US $4.40 |
||
|
17
|
17
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
18
|
18
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
| replacement | |||||
|
18
|
18
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
18
|
18
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
19
|
19
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
19
|
19
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
19
|
19
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
20
|
20
9452147000 Circlip, internal, 47mm |
9452147000 |
from US $1.63 |
||
|
21
|
21
95701-080-160-7 Bolt (95701-08016-07)FLANGE, 8X16 |
95701-080-160-7 |
from US $0.59 |
||
|
22
|
22
95801-0810000 Bolt, flange (8x100) |
95801-0810000 |
US $1.18 |
||
