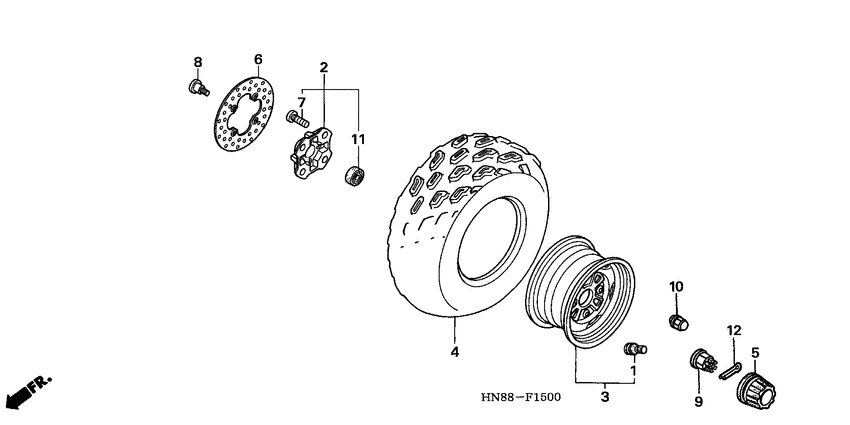

Front wheel Diagram Honda TRX 680 Rincon 680
- Model code
- TRX680FAA
- Engine Capacity
- 675
- Year
- 2010
- Sales region
- Europe
- Frame
- 1HFTE33E*A4500001 - 1HFTE33E*A4999999
- Engine
- TE33E8100001 -
- Power
- 33,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Rincon 680
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42753-HF1-670 Valve, rim (tr412) |
42753-HF1-670 |
US $7.70 |
||
|
2
|
2
44615-HN2-A20 Hub sub-assy., fr. |
44615-HN2-A20 |
US $268.80 |
||
|
3
|
3
44650-HN8-B80 Wheel sub-assy., fr. |
44650-HN8-B80 |
US $159.12 |
||
|
4
|
4
44711-HN8-A61 Tire, fr. (25x8r12) |
44711-HN8-A61 |
US $160.17 |
||
|
5
|
5
44732-HN2-010 Cap, wheel center |
44732-HN2-010 |
US $9.93 |
||
|
6
|
6
45251-HP0-A01 Disk, fr. brake |
45251-HP0-A01 |
US $189.91 |
||
|
7
|
7
90103-HA0-300 Bolt, wheel (10x33) |
90103-HA0-300 |
from US $3.87 |
||
|
8
|
8
90105-KL8-741 Bolt, fr. (8x24) |
90105-KL8-741 |
from US $4 |
||
|
8
|
8
90105-KR3-000 Bolt, fr. (8x24) |
90105-KR3-000 |
from US $4.07 |
||
|
8
|
8
90105-MBB-000 Bolt (8x24) |
90105-MBB-000 |
from US $4.44 |
||
| replacement | |||||
|
8
|
8
90105-MV9-003 Bolt, disk (8x24) |
90105-MV9-003 |
from US $3.85 |
||
|
8
|
8
90105-MV9-003 Bolt, disk (8x24) |
90105-MV9-003 |
from US $3.85 |
||
|
9
|
9
90305-HM5-A80 Nut, castle (16mm) |
90305-HM5-A80 |
from US $6.66 |
||
|
10
|
10
90314-HN2-003 Nut, wheel |
90314-HN2-003 |
from US $6.38 |
||
|
11
|
11
91263-HA7-771 Dust seal |
91263-HA7-771 |
from US $4.74 |
||
|
12
|
12
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
12
|
12
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
