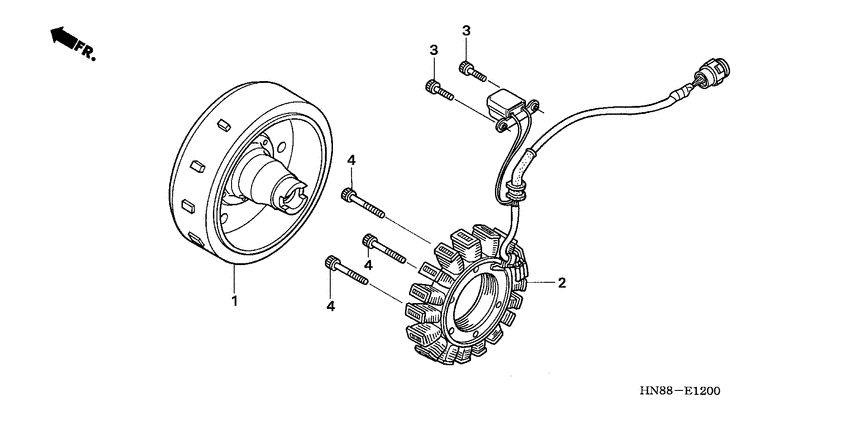

Generator Diagram Honda TRX 680 Rincon 680
- Model code
- TRX680FAA
- Engine Capacity
- 675
- Year
- 2010
- Sales region
- Europe
- Frame
- 1HFTE33E*A4500001 - 1HFTE33E*A4999999
- Engine
- TE33E8100001 -
- Power
- 33,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Rincon 680
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31110-HN8-A61 Flywheel |
31110-HN8-A61 |
from US $464.64 |
||
|
2
|
2
31120-HN8-A61 Stator |
31120-HN8-A61 |
US $282.34 |
||
| replacement | |||||
|
2
|
2
31120-HN8-A62 Stator |
31120-HN8-A62 |
from US $381.28 |
||
|
3
|
3
90089-KR0-000 Bolt, socket, 5x12 |
90089-KR0-000 |
from US $2.22 |
||
|
4
|
4
96700-0603200 Bolt, socket (6x32) |
96700-0603200 |
from US $0.74 |
||
