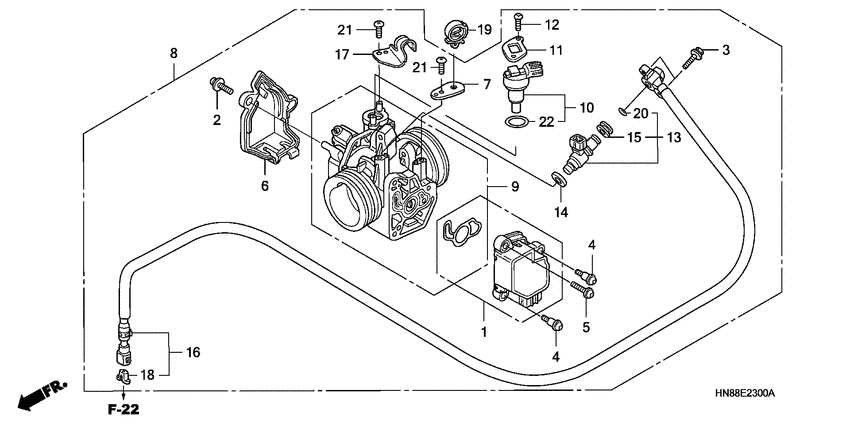

Throttle body Diagram Honda TRX 680 Rincon 680

Model code
TRX680FAA
Engine Capacity
675
Year
2010
Sales region
Europe
Frame
1HFTE33E*A4500001 - 1HFTE33E*A4999999
Engine
TE33E8100001 -
Power
33,5 hp
Stroke (2-stroke or 4-stroke)
4 stroke
2WD/4WD/AWD
4WD
Model
Rincon 680

Difficulties in parts search?

Parts list
Throttle body

Difficulties in parts search?

Throttle body
Description OEM Part # Price
1
1

16060-HP5-601

Sensor set

16060-HP5-601

from US $96.78

2
2

16080-HP5-601

Screw, washer

16080-HP5-601

US $2.96

3
3

16080-KPH-701

Bolt, flange (5x20)

16080-KPH-701

from US $1.70

4
4

16081-KPH-701

Screw, torx (5x8.7)

16081-KPH-701

from US $2

5
5

16082-KPH-701

Screw, torx (5x17)

16082-KPH-701

from US $2

6
6

16157-HN8-A61

Cover, body

16157-HN8-A61

US $4.56

7
7

16196-HN8-A60

Stay, harness clamp

16196-HN8-A60

US $10.13

8
8

16400-HN8-B42

Body assy. (gq6da b)

16400-HN8-B42

US $374.41

9
9

16410-HN8-B41

Body set

16410-HN8-B41

US $181.32

10
10

16430-HP6-A01

Valve set

16430-HP6-A01

US $76.52

11
11

16432-HN8-A61

Plate

16432-HN8-A61

US $5.37

12
12

16433-HN8-A61

Screw, torx

16433-HN8-A61

from US $0.51

13
13

16450-HN8-A61

Injector assy., fuel

16450-HN8-A61

from US $127.81

14
14

16472-MCW-000

Seal ring, injector

16472-MCW-000

from US $2.89

15
15

16473-P7A-004

Cushion ring

INJECTOR

16473-P7A-004

from US $2.74

16
16

17528-HN8-B41

Hose, fuel feed

17528-HN8-B41

from US $87.31

17
17

17640-HN8-A60

Clamp, fuel hose

17640-HN8-A60

US $8.87

18
18

17711-S0X-A31

Retainer

GREEN)(TOKAI

17711-S0X-A31

from US $3.40

19
19

90684-ZA0-601

Clip, harness

90684-ZA0-601

from US $1.64

20
20

91301-P7A-004

O-ring

91301-P7A-004

from US $1.80

21
21

93500-050-120-A

Screw

PAN, 5X12

93500-050-120-A

from US $0.37

22
22

16435-HN8-A61

O-ring (17.8x1.9)

16435-HN8-A61

from US $2.03
