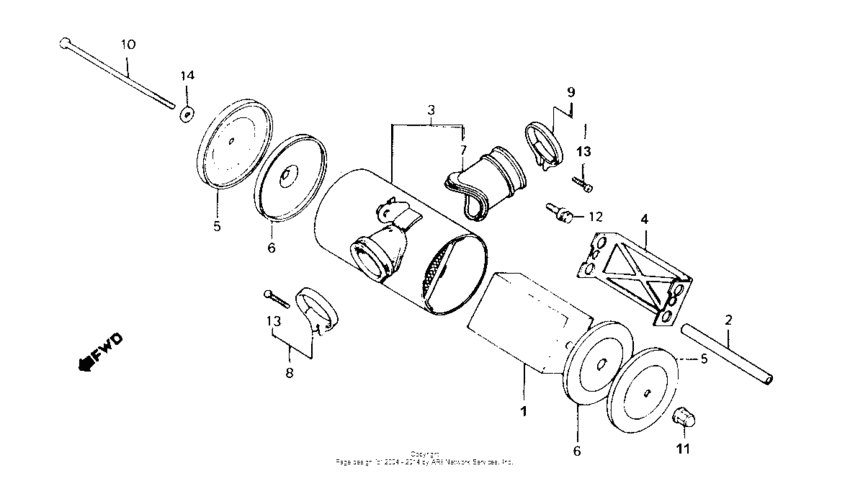

Air cleaner Diagram Honda TRX 70 FourTrax 70
- Model code
- TRX70 A
- Engine Capacity
- 70
- Year
- 1987
- Sales region
- USA
- Frame
- JH3TE100*HC100012 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17211-HB2-000 Element,air clean |
17211-HB2-000 |
from US $7.31 |
||
|
2
|
2
17212-098-000 Pipe,air cleaner |
17212-098-000 |
from US $4.44 |
||
|
3
|
3
17221-HB2-010
Case,air cleaner
Use up to Frame SN HC109054 |
17221-HB2-010 |
— | ||
|
4
|
4
17222-HB2-000
Plate,element set
|
17222-HB2-000 |
— | ||
|
5
|
5
17231-098-950ZA
Cover,air c*nh-1*
|
17231-098-950ZA |
— | ||
|
6
|
6
17252-HB2-000
Packing,air clean
|
17252-HB2-000 |
— | ||
|
7
|
7
17254-HB2-300
Tube,air cleaner
|
17254-HB2-300 |
— | ||
|
8
|
8
17255-HB2-003 Band, air cleaner connecting tube |
17255-HB2-003 |
from US $9.74 |
||
|
8
|
8
17255-HB3-010
Band, a/clnr tube
|
17255-HB3-010 |
— | ||
|
9
|
9
95018-42250 Band (42) |
95018-42250 |
from US $3.26 |
||
|
10
|
10
90117-HB2-000
Screw,pan,6x140
|
90117-HB2-000 |
— | ||
|
11
|
11
90304-438-000 Nut, cap, 6mm |
90304-438-000 |
from US $4.29 |
||
|
12
|
12
93401-060-120-8 Bolt-washer6X12 |
93401-060-120-8 |
from US $0.52 |
||
|
13
|
13
93500-040250G Screw, pan, 4x25 |
93500-040250G |
from US $0.37 |
||
|
14
|
14
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
