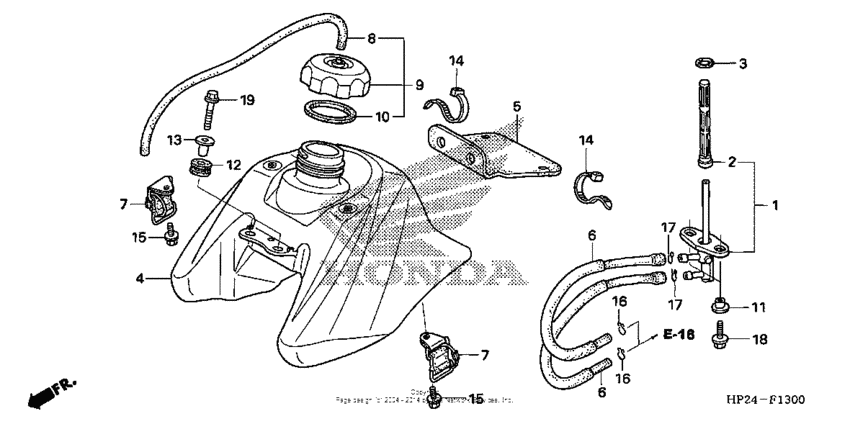

Fuel tank (1) Diagram Honda TRX 90 TRX 90
- Model code
- TRX90 AC
- Engine Capacity
- 86
- Year
- 2006
- Sales region
- USA
- Frame
- JH2TE181*6K000001 - JH2TE181*6K099999
- Power
- 6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- TRX 90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16900-HP2-671 Filter assy., fuel |
16900-HP2-671 |
from US $32.74 |
||
|
2
|
2
16952-HN1-003 Screen set |
16952-HN1-003 |
from US $21.98 |
||
|
3
|
3
16997-467-000 O-ring, 11.8x3.55 |
16997-467-000 |
from US $2.07 |
||
|
4
|
4
17510-HP2-670
Tank, fuel
|
17510-HP2-670 |
— | ||
|
5
|
5
17511-HP2-670 Mat, fuel tank |
17511-HP2-670 |
from US $8.32 |
||
|
6
|
6
17514-HP2-670 Tube, fuel |
17514-HP2-670 |
US $10.05 |
||
|
7
|
7
17516-HP2-670 Band, rr. tank |
17516-HP2-670 |
from US $13.92 |
||
|
8
|
8
17521-HA2-670 Tube |
17521-HA2-670 |
from US $7.25 |
||
|
9
|
9
17620-HF7-000 Cap assy., fuel tank |
17620-HF7-000 |
from US $68.27 |
||
|
10
|
10
17624-HF7-000 Gasket, fuel cap |
17624-HF7-000 |
from US $6.02 |
||
|
11
|
11
17626-467-000 Collar, fuel tank setting |
17626-467-000 |
from US $4.44 |
||
|
12
|
12
18334-KA3-830 Rubber, muffler |
18334-KA3-830 |
from US $2.07 |
||
|
13
|
13
19052-MGH-640 Collar |
19052-MGH-640 |
from US $2.03 |
||
|
14
|
14
35701-MG9-950 Band (black 3.5x140) |
35701-MG9-950 |
from US $2.15 |
||
|
15
|
15
90020-ZV0-000 Bolt, flange (6x10) |
90020-ZV0-000 |
from US $1.26 |
||
|
16
|
16
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
17
|
17
95002-02120 ClipTUBE (B12) |
95002-02120 |
from US $0.52 |
||
|
18
|
18
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
|
19
|
19
95701-060-220-7 BoltFLANGE, 6X22 |
95701-060-220-7 |
from US $0.59 |
