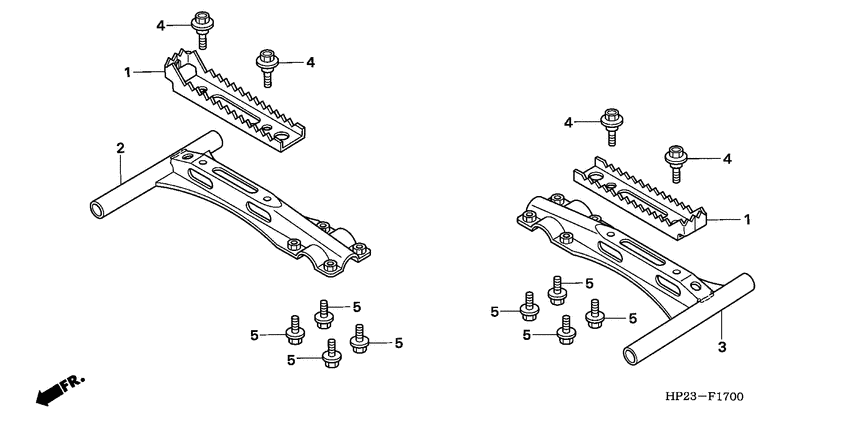

Step Diagram Honda TRX 90 Sportrax 90
- Model code
- TRX906
- Engine Capacity
- 86
- Year
- 2006
- Sales region
- Australia
- Frame
- JH2TE18U*6K400001 - JH2TE18U*6K499999
- Engine
- TE18E8000001 - TE18E8999999
- Power
- 6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Sportrax 90
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50610-HP2-670 Step |
50610-HP2-670 |
US $22.22 |
||
| replacement | |||||
|
1
|
1
50610-HP2-305 Step |
50610-HP2-305 |
US $19.02 |
||
|
2
|
2
50611-HP2-670 Bracket, r. step |
50611-HP2-670 |
US $30.91 |
||
|
3
|
3
50612-HP2-670 Bracket, l. step |
50612-HP2-670 |
US $30.91 |
||
|
4
|
4
90111-147-000 Bolt, flange, 6mm |
90111-147-000 |
from US $3.18 |
||
|
5
|
5
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
