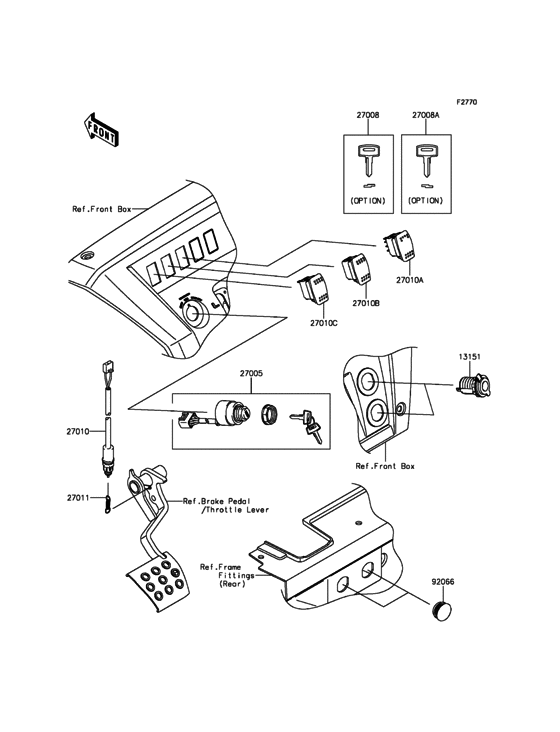

Ignition Switch Diagram Kawasaki KAF1000 Mule PRO-DXT
- Model code
- KAF1000AGF
- Engine Capacity
- 1000
- Year
- 2016
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule PRO-DXT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13151
|
13151
13151-0556 SWITCH-COMP,OUTLET,12 |
13151-0556 |
from US $12.50 |
||
|
27005
|
27005
27005-0585 SWITCH-ASSY-IGNITION |
27005-0585 |
US $84.04 |
||
| replacement | |||||
|
27005
|
27005
27005-0643 SWITCH-ASSY-IGNITION |
27005-0643 |
from US $98.21 |
||
|
27008
|
27008
27008-1041 KEY-LOCK,BLANK |
27008-1041 |
from US $12.83 |
||
|
27008A
|
27008A
27008-1042 KEY-LOCK,BLANK |
27008-1042 |
from US $12.83 |
||
|
27010
|
27010
27010-0724 SWITCH,BRAKE |
27010-0724 |
from US $29.66 |
||
|
27010A
|
27010A
27010-0750 SWITCH,HEAD LAMP |
27010-0750 |
from US $69.34 |
||
|
27010B
|
27010B
27010-0751 SWITCH,2WD/4WD |
27010-0751 |
from US $29.09 |
||
|
27010C
|
27010C
27010-0810 SWITCH,DIFF LOCK |
27010-0810 |
from US $29.09 |
||
|
27011
|
27011
27011006 SPRING BRAKE LAMP SW |
27011006 |
from US $6.97 |
||
|
92066
|
92066
92066-0794 PLUG,D.C. SOCKET |
92066-0794 |
from US $1.24 |
||
