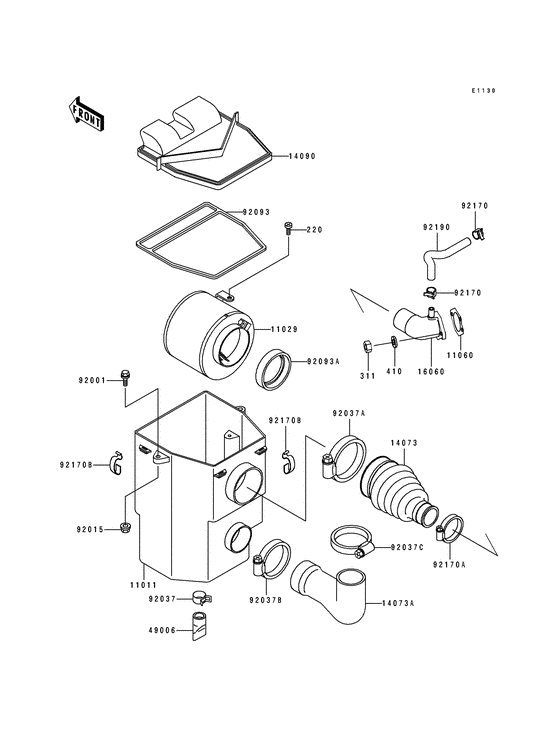

Air filter Diagram Kawasaki KAF300 Mule 500
- Model code
- KAF300-A1
- Engine Capacity
- 300
- Year
- 1993
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-1367 CASE-AIR FILTER |
11011-1367 |
from US $58.48 |
||
|
11029
|
11029
11029-1004 ELEMENT-ASSY-AIR FILTER |
11029-1004 |
from US $40.80 |
||
|
11060
|
11060
11009-2925 GASKET,AIR FILTER |
11009-2925 |
from US $1.22 |
||
| replacement | |||||
|
11060
|
11060
11060-2334 GASKET,AIR FILTER |
11060-2334 |
from US $1.21 |
||
|
14073
|
14073
14073-1453 DUCT,AIR FILTERDuct,air filter; |
14073-1453 |
from US $41.33 |
||
|
14073A
|
14073A
14073-1491 DUCT,AIR INTAKEDuct,air intake; |
14073-1491 |
US $35.61 |
||
|
14090
|
14090
14090-1106 COVER,AIR FILTERCover,air filter; |
14090-1106 |
from US $18.98 |
||
|
16060
|
16060
16060-2151 PIPE-INTAKE |
16060-2151 |
from US $13.06 |
||
|
49006
|
49006
49006-1199 BOOT |
49006-1199 |
from US $5.76 |
||
|
92001
|
92001
92001-1140 BOLT,6X25,W/WASHERBolt,6x25,w/washer; |
92001-1140 |
from US $3.36 |
||
|
92015
|
92015
92015-1193
NUT,FLANGED,6MM
Nut,flanged,6mm; |
92015-1193 |
— | ||
| replacement | |||||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1367 |
from US $3.01 |
||
|
92037
|
92037
92037-1460 CLAMP |
92037-1460 |
from US $6.68 |
||
| replacement | |||||
|
92037
|
92037
92171-1571 CLAMP |
92171-1571 |
from US $5.28 |
||
|
92037A
|
92037A
92037-3711 CLAMP |
92037-3711 |
from US $3.94 |
||
|
92037B
|
92037B
92037-3738 CLAMP |
92037-3738 |
from US $8.76 |
||
|
92037C
|
92037C
92037-506 CLAMP,HOSE |
92037-506 |
from US $6.22 |
||
|
92093
|
92093
92093-1241 SEAL,AIR FILTERSeal,air filter; |
92093-1241 |
from US $7.46 |
||
|
92093A
|
92093A
92093-1322 SEAL,DUSTSeal,dust; |
92093-1322 |
from US $5.90 |
||
|
92170
|
92170
92037-2002 CLAMP |
92037-2002 |
US $0.52 |
||
| replacement | |||||
|
92170
|
92170
92170-2082 CLAMP |
92170-2082 |
from US $1.24 |
||
|
92170A
|
92170A
92170-1036 CLAMP,COOLING HOSE |
92170-1036 |
from US $10.01 |
||
|
92170B
|
92170B
92170-1211 CLAMP,AIR FILTERClamp,air filter; |
92170-1211 |
from US $4.51 |
||
|
92190
|
92190
92059-2280 TUBE |
92059-2280 |
from US $4.98 |
||
|
220
|
220
220B0614
SCREW-PAN-CROS,6X14
Screw-pan-cros,6x14; |
220B0614 |
— | ||
| replacement | |||||
|
220
|
220
220AA0614 SCREW-PAN-CROS,6X14Screw-pan-cros,6x14; |
220AA0614 |
from US $0.95 |
||
|
311
|
311
311B0600
NUT-HEX,6MM
Nut-hex,6mm; |
311B0600 |
— | ||
| replacement | |||||
|
311
|
311
311AA0600 NUT-HEX,6MMNut-hex,6mm; |
311AA0600 |
from US $0.63 |
||
|
410
|
410
410B0600
WASHER-PLAIN-SMALL
Washer-plain-small,6mm; |
410B0600 |
— | ||
| replacement | |||||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALLWasher-plain-small,6mm; |
410AA0600 |
from US $0.79 |
||
