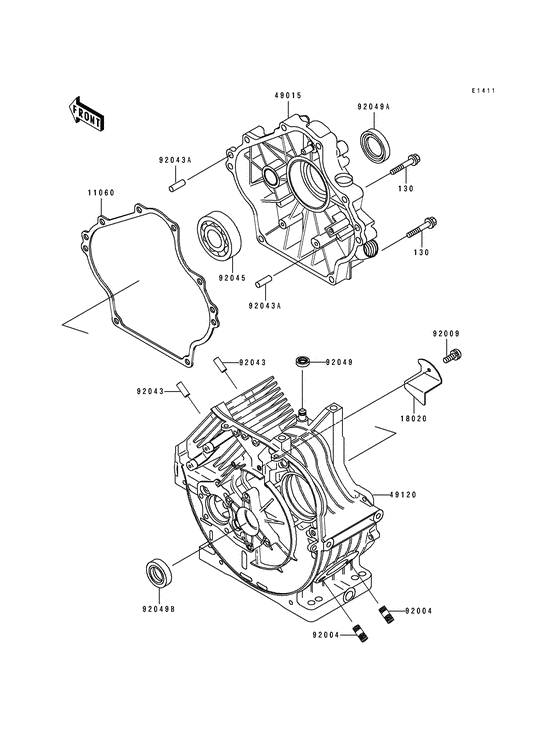

Crankcase Diagram Kawasaki KAF300 Mule 500
- Model code
- KAF300-A1
- Engine Capacity
- 300
- Year
- 1993
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11060
|
11060
11009-2940 GASKETGasket,crankcase cover; |
11009-2940 |
US $9.05 |
||
| replacement | |||||
|
11060
|
11060
11060-2122 GASKETGasket,crankcase cover; |
11060-2122 |
from US $9.81 |
||
|
18020
|
18020
18020-2060 BAFFLE |
18020-2060 |
US $1.10 |
||
|
49015
|
49015
49015-6099 COVER-CRANKCASE |
49015-6099 |
US $124.11 |
||
|
49120
|
49120
49120-6062 CRANKCASE-COMP |
49120-6062 |
from US $497.05 |
||
|
92004
|
92004
92004-2083 STUDStud,6x14; |
92004-2083 |
from US $1.40 |
||
|
92009
|
92009
92009-2308 SCREW |
92009-2308 |
from US $0.75 |
||
|
92043
|
92043
92043-1037 PIN,DOWEL,10X8.2X14Pin,dowel,10x14; |
92043-1037 |
from US $0.97 |
||
|
92043A
|
92043A
92043-1263 PIN,6.2X8X14Pin,6.2x8x14; |
92043-1263 |
from US $0.75 |
||
|
92045
|
92045
92045-2168 BEARING-BALL,6306JRCMBearing-ball,6306jrcm; |
92045-2168 |
from US $20.22 |
||
|
92049
|
92049
92049-2097 SEAL-OILSeal-oil,vc-6x10x2.5; |
92049-2097 |
from US $1.56 |
||
|
92049A
|
92049A
92049-2103 SEAL-OIL |
92049-2103 |
US $7.56 |
||
| replacement | |||||
|
92049A
|
92049A
92049-2220 SEAL-OIL |
92049-2220 |
from US $7.78 |
||
|
92049B
|
92049B
92049-2199 SEAL-OIL |
92049-2199 |
from US $3.57 |
||
|
130
|
130
130T0845 BOLT-FLANGED,8X45 |
130T0845 |
US $1.21 |
||
| replacement | |||||
|
130
|
130
130CA0845 BOLT-FLANGED,8X45 |
130CA0845 |
from US $1.40 |
||
