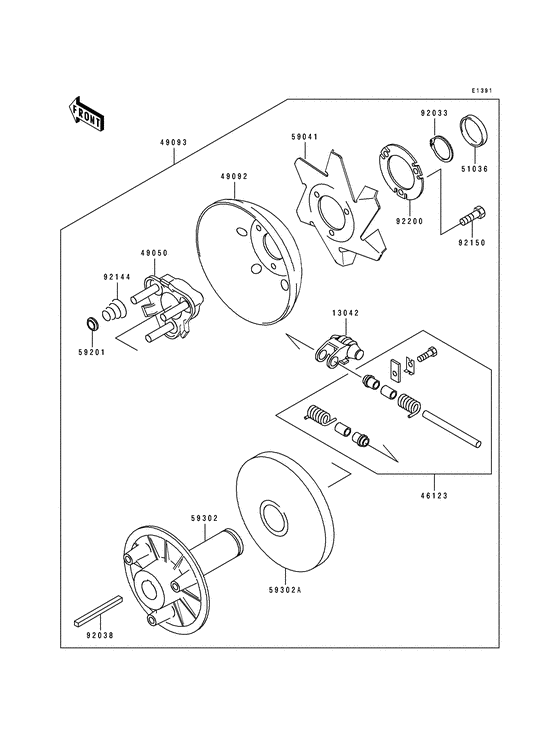

Drive converter Diagram Kawasaki KAF300 Mule 500
- Model code
- KAF300-A1
- Engine Capacity
- 300
- Year
- 1993
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13042
|
13042
13042-1080 WEIGHT |
13042-1080 |
from US $74.81 |
||
|
46123
|
46123
46123-5501 KIT-SPRINGSSpring kit(complete set); |
46123-5501 |
US $149.14 |
||
|
49050
|
49050
49050-1054 SPIDER |
49050-1054 |
US $111.86 |
||
|
49092
|
49092
49092-1053 RAMP |
49092-1053 |
US $33.79 |
||
| replacement | |||||
|
49092
|
49092
49092-1054 RAMP |
49092-1054 |
from US $33.79 |
||
|
49093
|
49093
49093-1054 CONVERTER-ASSY-DRIVE |
49093-1054 |
US $496.37 |
||
| replacement | |||||
|
49093
|
49093
49093-1056 CONVERTER-ASSY-DRIVE |
49093-1056 |
from US $667.18 |
||
|
51036
|
51036
51036-1057 CUP |
51036-1057 |
from US $11.47 |
||
|
59041
|
59041
59041-1056 FAN |
59041-1056 |
from US $19.31 |
||
|
59201
|
59201
59201-5501 KIT-BUMPERBumper kit(complete set); |
59201-5501 |
from US $13 |
||
|
59302
|
59302
59302-1056 SHEAVE-COMP,FIXEDSheave-comp,fixed; |
59302-1056 |
US $144.97 |
||
| replacement | |||||
|
59302
|
59302
59302-1061 SHEAVE-COMP,FIXEDSheave-comp,fixed; |
59302-1061 |
US $144.97 |
||
|
59302A
|
59302A
59302-1057 SHEAVE-COMPSheave-comp,movable; |
59302-1057 |
US $211.73 |
||
|
92033
|
92033
92033-1275 RING-SNAP |
92033-1275 |
from US $1.46 |
||
|
92038
|
92038
92038-1054 KEY |
92038-1054 |
from US $4.05 |
||
|
92144
|
92144
92144-5501 KIT-SPRINGSSpring kit(complete set); |
92144-5501 |
from US $16.65 |
||
|
92200
|
92200
92200-5501 KIT-WASHERWasher kit(complete set); |
92200-5501 |
from US $18.83 |
||
