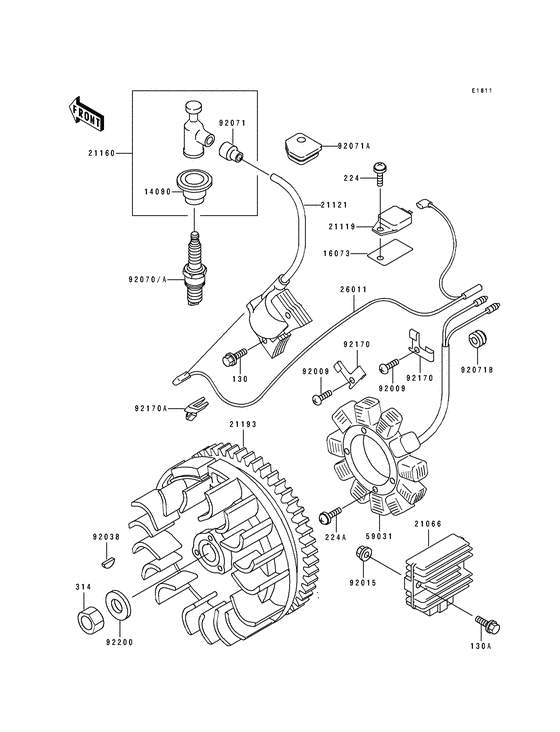

Generator/ignition coil Diagram Kawasaki KAF300 Mule 500
- Model code
- KAF300-A1
- Engine Capacity
- 300
- Year
- 1993
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14090
|
14090
14024-2234 COVER |
14024-2234 |
from US $2.49 |
||
|
16073
|
16073
16073-2134 INSULATOR |
16073-2134 |
US $1.40 |
||
|
21066
|
21066
21066-2004 REGULATOR VOLTAGE |
21066-2004 |
from US $95.33 |
||
|
21119
|
21119
21119-2125 IGNITER |
21119-2125 |
US $76.41 |
||
| replacement | |||||
|
21119
|
21119
21119-2146 IGNITER |
21119-2146 |
from US $79.93 |
||
|
21121
|
21121
21121-2067 COIL-IGNITION |
21121-2067 |
from US $45.10 |
||
|
21160
|
21160
21160-2051 CAP-ASSY-PLUG |
21160-2051 |
from US $12.90 |
||
|
21193
|
21193
21193-2105
FLYWHEEL-ASSY
|
21193-2105 |
— | ||
|
26011
|
26011
26011-2228 WIRE-LEAD |
26011-2228 |
US $6.19 |
||
|
59031
|
59031
59031-2097 COIL-CHARGING |
59031-2097 |
from US $92.53 |
||
|
92009
|
92009
92009-2308 SCREW |
92009-2308 |
from US $0.75 |
||
|
92015
|
92015
92015-1193
NUT,FLANGED,6MM
Nut,flanged,6mm; |
92015-1193 |
— | ||
| replacement | |||||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1367 |
from US $3.01 |
||
|
92038
|
92038
92038-2094 KEYKey,woodruff; |
92038-2094 |
from US $1.56 |
||
|
92070
|
92070
92070-1167 SPARK PLUG BP5ESPlug-spark,bp5es(ngk); |
92070-1167 |
from US $6.38 |
||
|
92070A
|
92070A
92070-2077 Plug-spark,bpr5es(ngkPlug-spark,bpr5es(ngk); |
92070-2077 |
US $7 |
||
|
92071
|
92071
92071-2008 DAMPER |
92071-2008 |
from US $1.09 |
||
|
92071A
|
92071A
92071-2112 GROMMET |
92071-2112 |
from US $2.33 |
||
|
92071B
|
92071B
92071-2125 GROMMET |
92071-2125 |
from US $1.40 |
||
|
92170
|
92170
92170-2016 CLAMP |
92170-2016 |
from US $1.71 |
||
|
92170A
|
92170A
92170-2017 CLAMP |
92170-2017 |
from US $2.49 |
||
|
92200
|
92200
92022-2205 WASHER |
92022-2205 |
from US $1.71 |
||
|
130
|
130
130B0525
Bolt-flanged
|
130B0525 |
— | ||
| replacements | |||||
|
130
|
130
130BA0525 BOLT-FLANGED,5X25 |
130BA0525 |
from US $0.95 |
||
|
130
|
130
130AA0525
Bolt-flanged,5x25
|
130AA0525 |
— | ||
|
130A
|
130A
130J0625
BOLT-FLANGED,6X25
Bolt-flanged,6x25; |
130J0625 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0625 BOLT-FLANGED,6X25Bolt-flanged,6x25; |
130BB0625 |
from US $1.61 |
||
|
224
|
224
224B0508 SCREW-PAN-WP-CROS |
224B0508 |
from US $0.45 |
||
| replacement | |||||
|
224
|
224
224AA0508 SCREW-PAN-WP-CROS |
224AA0508 |
from US $0.94 |
||
|
224A
|
224A
224B0620
SCREW-PAN-WP-CROS,6X2
|
224B0620 |
— | ||
| replacement | |||||
|
224A
|
224A
224AA0620 SCREW-PAN-WP-CROS,6X2 |
224AA0620 |
from US $0.92 |
||
|
314
|
314
314G1600 NUT-HEX-FINE,16MM |
314G1600 |
US $1.40 |
||
| replacement | |||||
|
314
|
314
314BA1600 NUT-HEX-FINE,16MM |
314BA1600 |
from US $1.24 |
||
