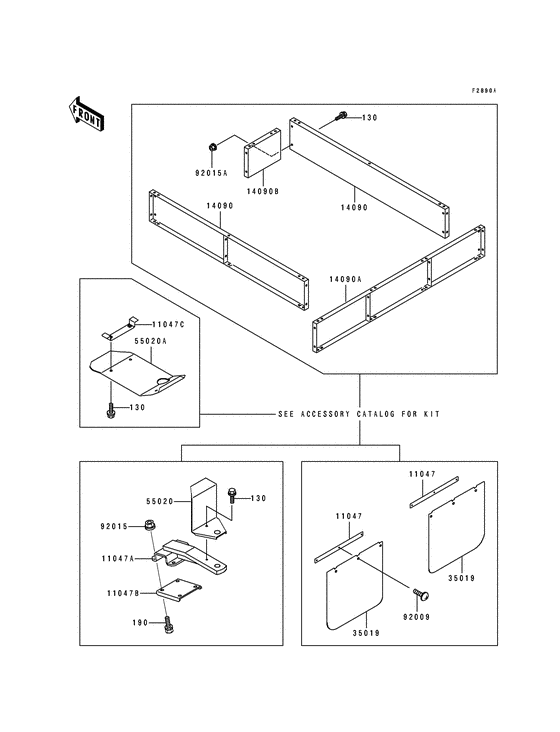

Optional parts (Rear) Diagram Kawasaki KAF300 Mule 500
- Model code
- KAF300-A1
- Engine Capacity
- 300
- Year
- 1993
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11047
|
11047
11047-1172 BRACKET REAR FLAPBracket,rear flap; |
11047-1172 |
from US $12.12 |
||
|
11047A
|
11047A
11047-1430
Bracket
Bracket,trailer hitch,upp; |
11047-1430 |
— | ||
|
11047B
|
11047B
11047-1431 BRACKET,TLR HITCH LWRBracket,trailer hitch,lwr; |
11047-1431 |
US $22.97 |
||
|
11047C
|
11047C
11047-1432 BRACKET,GEAR CASE GDBracket,gear case guard; |
11047-1432 |
US $22.10 |
||
|
14090
|
14090
14090-1109-B1 CARRIER,SIDE COVERCover,carrier,side,f.red; |
14090-1109-B1 |
US $99.59 |
||
|
14090A
|
14090A
14090-1110-B1 CARRIER,REAR COVERCover,carrier,rear,f.red; |
14090-1110-B1 |
US $109.55 |
||
|
14090B
|
14090B
14090-1111-B1 CARRIER,FRONT COVERCover,carrier,front,f.red; |
14090-1111-B1 |
US $40 |
||
|
35019
|
35019
35019-1244 FLAP,RRFlap,rear fender; |
35019-1244 |
US $43.78 |
||
|
55020
|
55020
55020-1399 GUARD,MUFFLERGuard,muffler; |
55020-1399 |
US $29.18 |
||
|
55020A
|
55020A
55020-1400
Guard,gear case
Guard,gear case; |
55020-1400 |
— | ||
|
92009
|
92009
92009-1288
SCREW
Screw,6x14; |
92009-1288 |
— | ||
| replacements | |||||
|
92009
|
92009
92009-1662 SCREWScrew,6x14; |
92009-1662 |
from US $2.53 |
||
|
92009
|
92009
92172-0004 SCREW,6X14Screw,6x14; |
92172-0004 |
from US $1.27 |
||
|
92015
|
92015
92015-1366 NUT,FLANGED,10MMNut,flanged,10mm; |
92015-1366 |
US $3.85 |
||
| replacement | |||||
|
92015
|
92015
92015-1428 NUT,FLANGED,10MMNut,flanged,10mm; |
92015-1428 |
from US $3.01 |
||
|
92015A
|
92015A
92015-1386 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1386 |
from US $3.48 |
||
| replacement | |||||
|
92015A
|
92015A
92015-1233 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1233 |
from US $3.90 |
||
|
130
|
130
130J0616
BOLT-FLANGED,6X16
Bolt-flanged,6x16,black; |
130J0616 |
— | ||
| replacement | |||||
|
130
|
130
130BB0616 BOLT-FLANGED,6X16Bolt-flanged,6x16,black; |
130BB0616 |
from US $0.95 |
||
|
190
|
190
190H1025 BOLT-UPSET-WS |
190H1025 |
US $4.07 |
||
| replacement | |||||
|
190
|
190
190BA1025 BOLT-UPSET-WS |
190BA1025 |
from US $1.40 |
||
