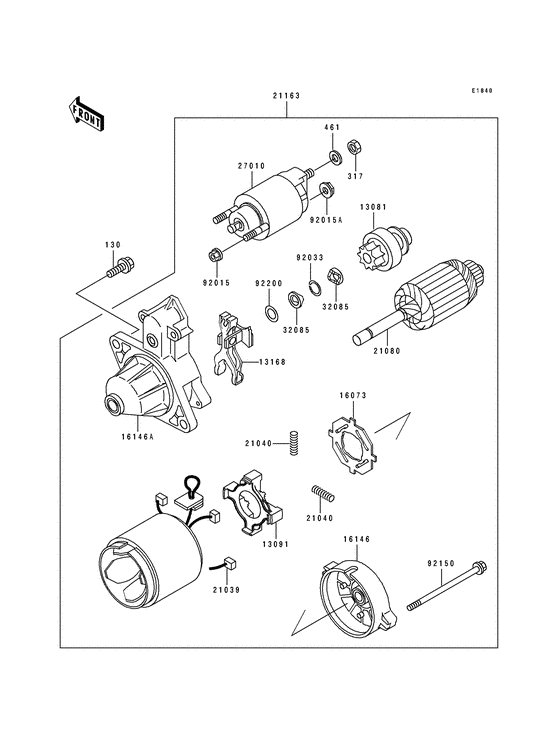

Starter motor Diagram Kawasaki KAF300 Mule 500
- Model code
- KAF300-A1
- Engine Capacity
- 300
- Year
- 1993
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13081
|
13081
13081-2164 CLUTCH-ASSY |
13081-2164 |
from US $106.23 |
||
|
13091
|
13091
13091-2068 HOLDER-BRUSHHolder,brush; |
13091-2068 |
from US $14.77 |
||
|
13168
|
13168
13168-2148 LEVERLever,shift; |
13168-2148 |
from US $15.55 |
||
|
16073
|
16073
16073-2098 INSULATOR |
16073-2098 |
from US $6.38 |
||
|
16146
|
16146
16146-2164 COVER-REARCover-assy,rr; |
16146-2164 |
from US $51.94 |
||
|
16146A
|
16146A
16146-2191 COVER-ASSY,FRCover-assy,fr; |
16146-2191 |
from US $106.61 |
||
| replacement | |||||
|
16146A
|
16146A
16146-2249 COVER-ASSYCover-assy,fr; |
16146-2249 |
from US $113.02 |
||
|
21039
|
21039
21039-2059 BRUSH |
21039-2059 |
from US $13.06 |
||
|
21040
|
21040
21040-2052 SPRING-BRUSH |
21040-2052 |
from US $2.95 |
||
|
21080
|
21080
21080-2064 ARMATURE |
21080-2064 |
from US $208.55 |
||
|
21163
|
21163
21163-2109 Starter-electric |
21163-2109 |
US $523.28 |
||
| replacement | |||||
|
21163
|
21163
21163-2148 Starter-electric |
21163-2148 |
from US $423.01 |
||
|
27010
|
27010
27010-2122 SWITCH |
27010-2122 |
US $191.18 |
||
| replacement | |||||
|
27010
|
27010
27010-7005 SWITCH |
27010-7005 |
from US $114.15 |
||
|
32085
|
32085
32085-2066 STOPPER |
32085-2066 |
US $13.01 |
||
| replacement | |||||
|
32085
|
32085
32085-2097 STOPPER |
32085-2097 |
from US $14.40 |
||
|
92015
|
92015
92015-2146 NUT |
92015-2146 |
from US $1.24 |
||
|
92015A
|
92015A
92015-2147 NUT |
92015-2147 |
from US $1.71 |
||
|
92033
|
92033
92033-2081 RING-SNAP |
92033-2081 |
from US $2.65 |
||
|
92150
|
92150
92002-2277 BOLT |
92002-2277 |
from US $5.76 |
||
|
92200
|
92200
92022-2218 WASHER |
92022-2218 |
US $1.13 |
||
| replacement | |||||
|
92200
|
92200
32085-2097 STOPPER |
32085-2097 |
from US $14.40 |
||
|
130
|
130
130G0825
BOLT-FLANGED,8X25
Bolt-flanged,8x25; |
130G0825 |
— | ||
| replacement | |||||
|
130
|
130
130BA0825 BOLT-FLANGED,8X25Bolt-flanged,8x25; |
130BA0825 |
from US $1.27 |
||
|
317
|
317
317B0800 NUT-HEX-SMALLNut-hex-small,8mm; |
317B0800 |
from US $0.94 |
||
| replacement | |||||
|
317
|
317
317AA0800 NUT-HEX-SMALLNut-hex-small,8mm; |
317AA0800 |
from US $0.94 |
||
|
461
|
461
461F0800
WASHER-SPRING,8MM
Washer-spring,8mm; |
461F0800 |
— | ||
| replacement | |||||
|
461
|
461
461DA0800 WASHER-SPRING,8MMWasher-spring,8mm; |
461DA0800 |
from US $0.48 |
||
