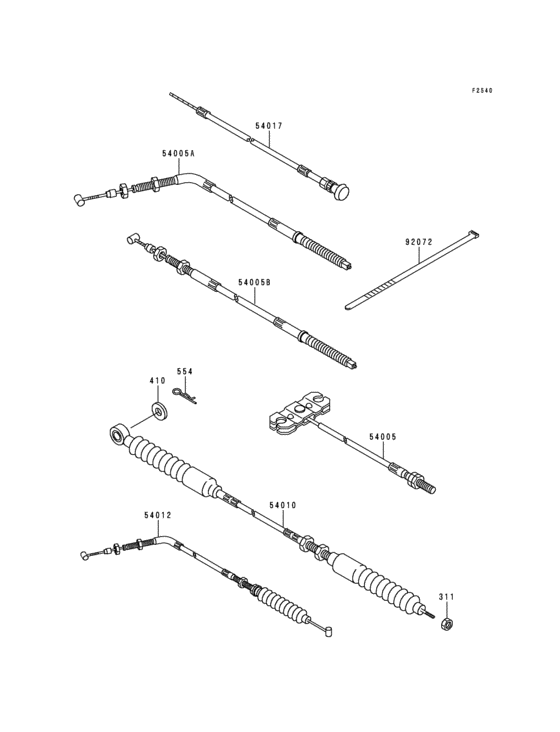

Cable Diagram Kawasaki KAF300 Mule 500
- Model code
- KAF300-A1
- Engine Capacity
- 300
- Year
- 1993
- Sales region
- Canada
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
311
|
311
311B0600
NUT-HEX,6MM
|
311B0600 |
— | ||
| replacement | |||||
|
311
|
311
311AA0600 NUT-HEX,6MM |
311AA0600 |
from US $0.63 |
||
|
410
|
410
410E0800 WASHER-PLAIN-SMALL,8M |
410E0800 |
US $0.61 |
||
| replacement | |||||
|
410
|
410
410AA0800 WASHER-PLAIN-SMALL,8M |
410AA0800 |
from US $0.63 |
||
|
554
|
554
554A0800 PIN-SNAP |
554A0800 |
from US $2.09 |
||
| replacement | |||||
|
554
|
554
554DA0800 PIN-SNAP |
554DA0800 |
from US $0.63 |
||
|
54005
|
54005
54005-1160 CABLE-BRAKE,PARKING,F |
54005-1160 |
from US $12.44 |
||
|
54005A
|
54005A
54005-1166 CABLE-BRAKE PARKINGLH |
54005-1166 |
US $45.99 |
||
|
54005B
|
54005B
54005-1167 CABLE-BRAKE PARKINGRH |
54005-1167 |
US $27.32 |
||
|
54010
|
54010
54010-1086 CABLE SHIFT CONTROL |
54010-1086 |
from US $32.66 |
||
|
54012
|
54012
54012-1409 CABLE THROTTLE |
54012-1409 |
from US $24.65 |
||
|
54017
|
54017
54017-1131 CABLE STARTER |
54017-1131 |
US $15.89 |
||
|
92072
|
92072
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
||
