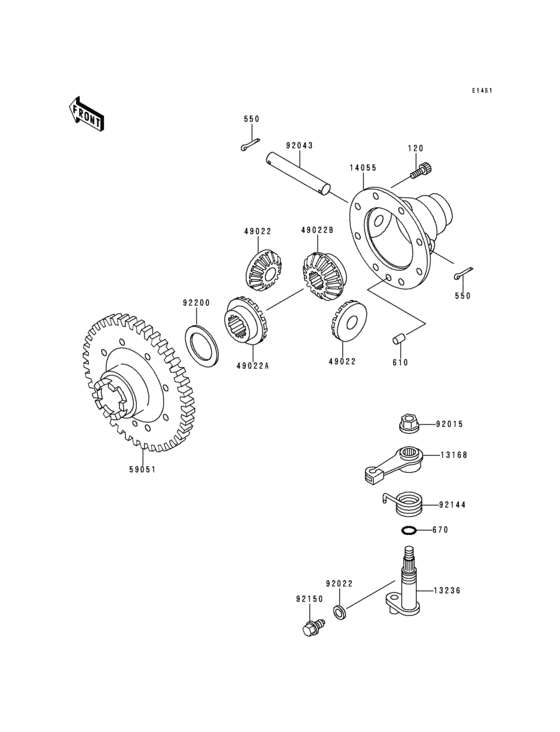

Differential Diagram Kawasaki KAF300 Mule 500
- Model code
- KAF300-A1
- Engine Capacity
- 300
- Year
- 1993
- Sales region
- Canada
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120P0820 BOLT-SOCKET |
120P0820 |
from US $1.74 |
||
| replacement | |||||
|
120
|
120
120CA0820 BOLT-SOCKET |
120CA0820 |
from US $1.27 |
||
|
550
|
550
550D2520 PIN COTTER 2.5X20 |
550D2520 |
from US $1.27 |
||
| replacement | |||||
|
550
|
550
550AA2520 PIN-COTTER,2.5X20 |
550AA2520 |
from US $0.63 |
||
|
610
|
610
610A0812 PIN-DOWEL,8X12 |
610A0812 |
from US $0.94 |
||
|
670
|
670
670B2010 0 RING, 10MM |
670B2010 |
from US $1.87 |
||
|
13168
|
13168
13168-1367 LEVER,DIFF LOCK |
13168-1367 |
US $19.73 |
||
| replacement | |||||
|
13168
|
13168
13168-1523 LEVER,DIFF LOCK |
13168-1523 |
from US $16.95 |
||
|
13236
|
13236
13236-1219 LEVER-COMP,DIFF LOCK |
13236-1219 |
from US $18.04 |
||
|
14055
|
14055
14055-1098 CASE-GEAR,DIFFERENTIA |
14055-1098 |
from US $290.82 |
||
|
49022
|
49022
49022-1105 GEAR-BEVEL,10T |
49022-1105 |
from US $61.75 |
||
|
49022A
|
49022A
49022-1117 GEAR-BEVEL,16T |
49022-1117 |
from US $117.42 |
||
|
49022B
|
49022B
49022-1120 GEAR-BEVEL,16T |
49022-1120 |
from US $112.59 |
||
|
59051
|
59051
59051-1239 GEAR,DIFFERENTIAL,67T |
59051-1239 |
from US $290.82 |
||
|
92015
|
92015
92015-1406 NUT,8MM |
92015-1406 |
from US $2.85 |
||
|
92022
|
92022
92022-077 WASHER,6.1X12X1 |
92022-077 |
from US $2.53 |
||
|
92043
|
92043
92043-1458 PIN,BEVEL GEAR |
92043-1458 |
from US $11.98 |
||
|
92144
|
92144
92144-1198 SPRING |
92144-1198 |
US $10.17 |
||
| replacement | |||||
|
92144
|
92144
92145-0253 SPRING |
92145-0253 |
from US $3.27 |
||
|
92150
|
92150
92002-1962 BOLT,FLANGED-SMALL,6X |
92002-1962 |
from US $3.57 |
||
|
92200
|
92200
92200-1077 WASHER |
92200-1077 |
from US $2.65 |
||
